39-01-2241, Molex, 5559 Female Connector Housing, 4.2mm Pitch, 24 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

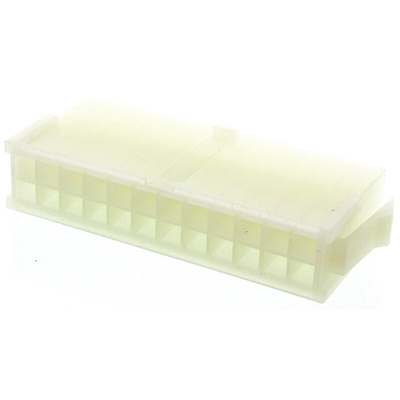

Molex Connector Housing, 24 Contacts, 13A Maximum Current Per Contact - Mini-Fit Jr Series - 39-01-2241

Looking for a dependable solution to keep your high-current connectors under cover? With a capacity of 13A per circuit, this connector housing from Molex is up to the task. It lets you wire up to 24 circuits in two neat rows of 12 to keep your setup organised. Listen up for the audible clicking sound – a sure-fire way to know your connections are mated and will stay locked and loaded in place, even through heavy-duty vibrations.

Features & Benefits

• Non-conductive and abrasion-resistant thanks to its tough nylon resin material
• Performs reliably in temperatures between -40°C and +105°C
• Flame-retardant, so it won’t catch alight in case of fire
• 4.2mm pitch maintains the ideal distance between connectors

Applications

• Automotive manufacturing
• Electronic control modules
• Gaming equipment

What size is this connector housing?

The unit’s compact dimensions of 57 (L) x 11.6mm (W) mean it fits neatly into limited spaces.

Molex Minifit Jr.™ Series

Datasheet

Datasheet

Line Drawing

Molex Mini-Fit Connector Datasheet

Application Specification - MINI - FIT JR CONNECTORS
