ACS-CP-C, ABB Operator Panel

ABB Operator Panel, For Inverter Drive, Single-Line Display - ACS-CP-C

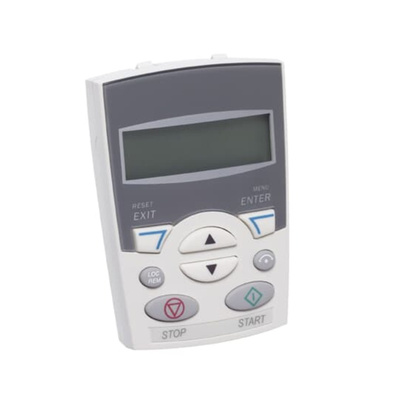

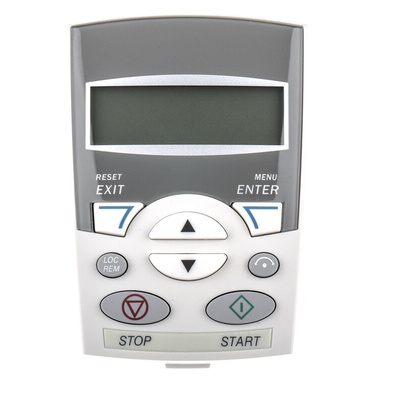

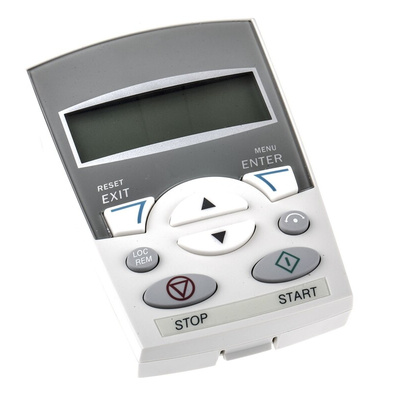

Keen to take charge of your motorised appliance's settings? Get hands-on with this operator panel from ABB. It lets you adjust an inverter drive's parameters, providing direct electric motor control at the push of a button. With its single-line screen, the unit clearly displays a motor's status, so you get hassle-free process updates. You'll have no problem knowing what the press, as the buttons are clearly labelled and the setup is intuitive. The panel mounts directly onto a wall or flat surface to give you easy access to machine control.

Features & Benefits

• Includes stop function for easy machine shut-down
• Measures just 70 (W) x 100 (H) x 22mm (D), so takes up minimal space
• Large push buttons for easy operation even when you're wearing gloves
• Robust plastic casing stands up to heavy handling

Applications

• Chemical processing
• Beverage production
• Industrial process control

How do I install this panel?

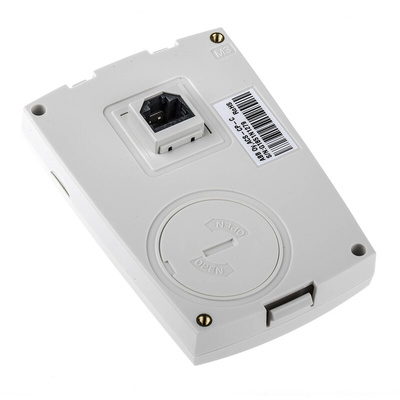

This unit fixes to a flat surface using two 3.5mm diameter screw holes. Electrical connections are made through the 24mm diameter connector in its rear panel, so you're not exposed to live wires.
