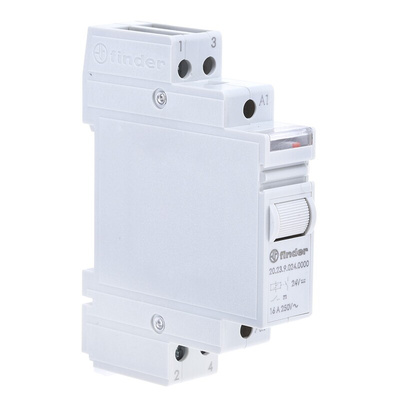

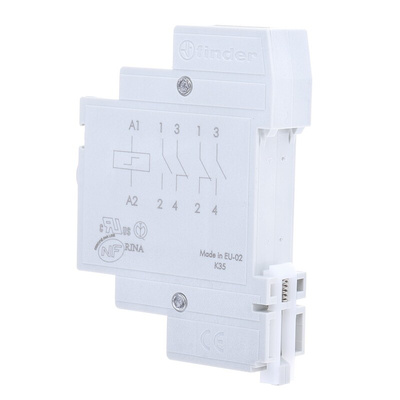

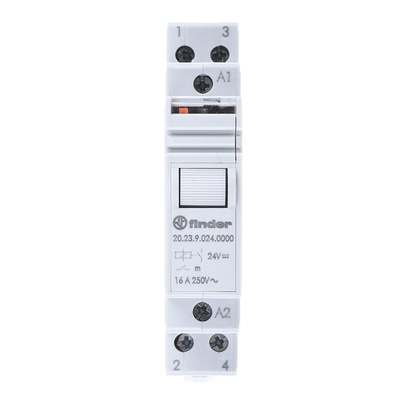

20.23.9.024.0000, Finder DIN Rail Latching Power Relay, 24V dc Coil, 16A Switching Current, SP-NC, SP-NO, Реле

Finder Step Relay

The Finder step relay is a DC powered double phase modular latching device with one NO and one NC contact and switching current 16A. On each successive energisation of the relay coil, this contacts change state thus providing a step or "flip flop" sequence of operation. With the advantage of an override test button, it allows manual advancement of the step sequence and individual mechanical flags provide a visual indication of contact status. It is recommended to use this relay in portable or battery-powered equipment requiring contact status to be maintained without continuous supply to the coil and functions where manual override operation is desired.

Features and Benefits

24VDC supply rating coil
35mm rail (EN 60715) mount
Cadmium-free contact material
Choice of 7 switching sequences
Contact material is silver alloy
Identification label
Insulation between the coil and contacts is 4kV
Maximum peak current is 30A
Operating temperature is from -40°C and 40°C
Possible to connect illuminated pushbuttons with the additional part 026.00
Screw type termination
SPST contact configuration
Test button with mechanical indicators
Width is 17.4mm

Applications

Automation for binds, grilles and shutters
Indoor lighting controls
Lighting control in corridors

Certifications

CE certified
cRUus certified
EAC certified
IP20 rated
LROS certified
RINA certified

Lloyd’s Register of Shipping

RINA Certificate
