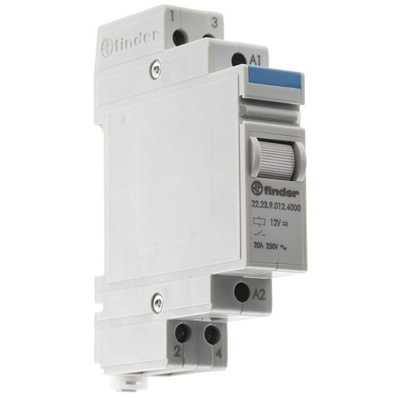

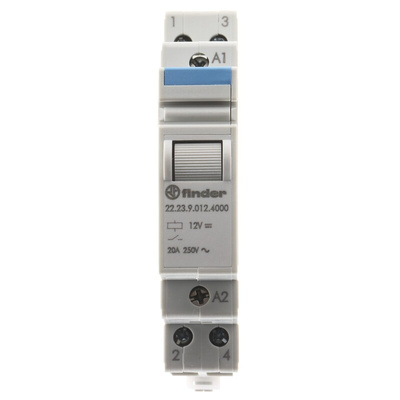

Finder Monostable Din Relay
The Finder 22 series DIN rail mount non-latching relay has contact configuration of SPST-NC, SPST-NO. It is actuated with a 12VDC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.
Features and Benefits
17.4 mm wide
35 mm rail mount
Coil power is 1.25W
Coil resistance is 115ohm
Identification label
Insulation between coil and contacts(1.2/50μ) is 4KV
Manual test button
Mechanical life 500 x103 cycles
Operating temperature ranging between -40°C and 40°C
Screw terminal type
Applications
Air conditioning
Heating
Lighting
Certifications
CE certified
GOST
IP20 rated
EN 60715
Lloyd’s Register of ShippingRINA CertificateDatasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
