DAT70510, Sensata / Cynergy3 Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 7000V dc Max, 2 A Max, 28Ω, Реле

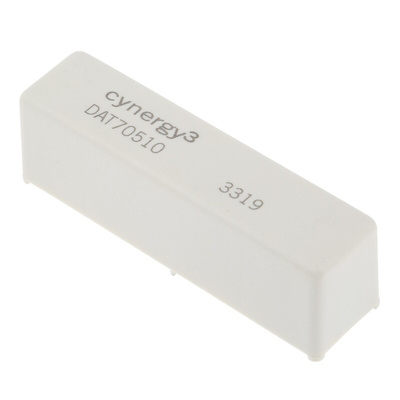

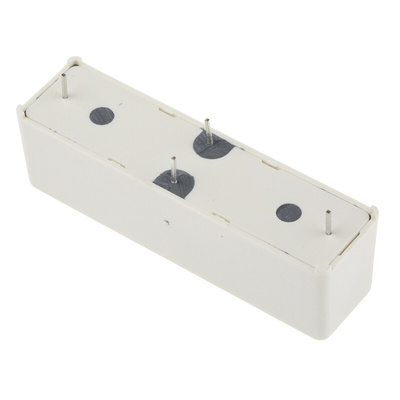

Sensata Cynergy3 SPNO Reed Relay, 5V DC, 50W - D Series - DAT70510

Control the on-and-off switching of your circuit with this reed relay from the Sensata Cynergy3 range. Its contacts are made from a durable tungsten material for high electrical conductivity and resistance to corrosion, ensuring a reliable connection. Thanks to its maximum switching voltage of 7000V AC/DC, it's suitable for use in high-power systems. This switch has a through-hole terminal for simple installation. Its compact dimensions of 60 (length) x 18.5 (height) x 15.8mm (depth) make it suitable for installation in circuits where space is limited. You'll commonly find it used in applications such as test equipment, cardiac defibrillators or high-voltage power supply systems.

Features & Benefits

• Wide operating temperature range of -20°C to +70°C for use in demanding environments
• Long lifespan of one million electrical cycles for long-lasting and reliable performance
• SPNO (single pole normally open) contact configuration means the circuit is only activated when switched on for user safety

How quickly does this reed relay operate?

This reed relay has a quick operating time of just 3ms, giving you a fast switching response.

D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet

Information Sheet - SAR92403
