DAT71210, Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 7000V dc Max, 2 A Max, 150Ω, Реле

HV Vacuum Encapsulated D Series

These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.

High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching

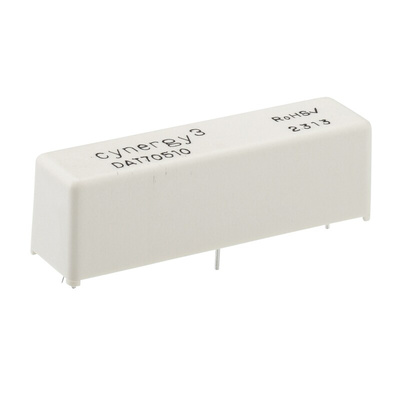

Sensata Cynergy3 SPNO Reed Relay, 12V DC, 150Ω - D Series - DAT71210

Mount this Sensata Cynergy3 reed relay on your PCB (printed circuit board) to operate switches. It has tungsten contacts, which allow for high isolation voltages and make it very durable. Use it in applications where reliability is crucial, such as cardiac defibrillators and automatic test equipment. The relay has a maximum switching voltage of 7000V (AC and DC), making it suitable for use with high-voltage power supplies. For a robust and secure fit, it's fixed to a board using a through-hole terminal.

Features and Benefits

• Tungsten contacts can switch high voltages, giving the relay a long service life of one million cycles
• Wide operating temperature range of -20°C to +70°C allows for use in harsh environments
• 60mm length makes for a fast operating time of 3 milliseconds including bounce

What is a reed relay?

A reed relay contains a reed switch, which is controlled by an electromagnetic coil.

What are the benefits of a reed switch?

As reed switches operate electromagnetically, they have no moving parts, are highly reliable and offer faster switching speeds. They're also hermetically sealed, which protects them from contaminants and corrosion.

D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet

Catalogue - Reed Relays
