DBT70510, Sensata / Cynergy3 Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SP-NC, 7000V dc Max, 2 A Max, 38Ω, Реле

HV Vacuum Encapsulated D Series

These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.

High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching

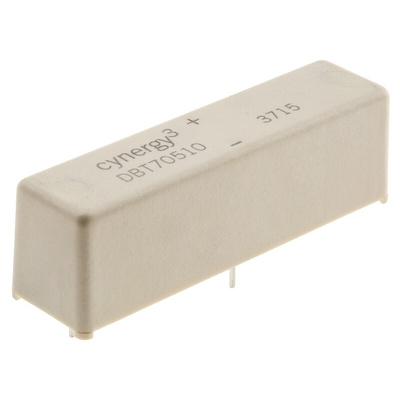

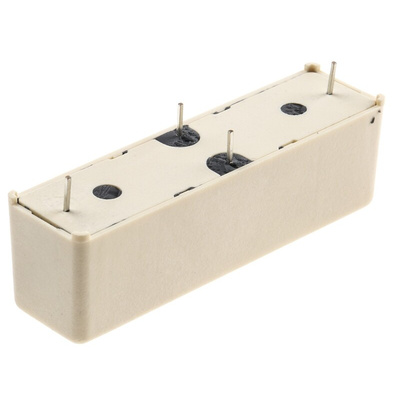

Sensata Cynergy3 Reed Relay, 5V DC Coil Voltage, 38Ω Coil Resistance - D Series - DBT70510

This reed relay from Sensata's Cynergy3 range lets you use reed switches to remotely control components or circuits that need to be electrically isolated. The relay has two magnetic terminals and an electromagnet held within a vacuum tube. This prevents the entry of moisture or contaminants for reliable performance. Thanks to a rapid operating time of just 2ms, the switch is a good choice for circuits where you need fast reaction times. It's commonly used in cardiac defibrillators, test equipment and power supplies.

Features & Benefits

• Contacts made from tungsten for reliable conductivity in high-voltage switching applications
• Wide operating temperature range of -20°C to +70°C for use in harsh environments
• High isolation voltage of 17kV makes it practical for demanding applications
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) for use in areas where space is limited

How long will this product last?

The switch has a long lifespan of 1,000,000 electrical cycles. This means it will last a long time without the need for frequent replacement or maintenance.
