DBT71210, Sensata / Cynergy3 Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SP-NC, 7000V dc Max, 2 A Max, 240Ω, Реле

HV Vacuum Encapsulated D Series

These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.

High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching

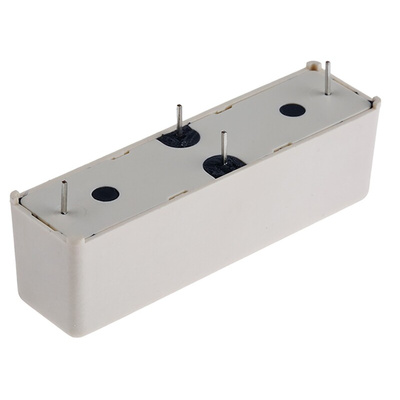

Sensata Cynergy3 PCB Reed Relay, 12V DC Coil Voltage, 50W - D Series - DBT71210

Use this reed relay from Sensata Cynergy3 to streamline the switching control of your electrical circuits. It has a fast operating time of just 2ms for situations where a rapid response is critical. This unit features an SPNC (single pole normally closed) configuration, so activating the relay disconnects the circuit for use in emergency situations. The contacts are made from tungsten for high-voltage conductivity and resistance to corrosion. You'll find reed relays like this one used for electrical testing and heavy-duty industrial systems.

Features & Benefits

• Wide operating temperature range of -20°C to +70°C for use in extreme environments
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) for use in areas where space is limited
• Maximum switching voltage of 7000V AC/DC (alternating current/direct current) for use in high-voltage applications
• Long lifespan of one million electrical cycles for long-lasting, reliable use

How do I mount this reed relay?

This reed relay is designed for mounting on a PCB (printed circuit board). It features through-hole terminals for a secure and simple attachment.
