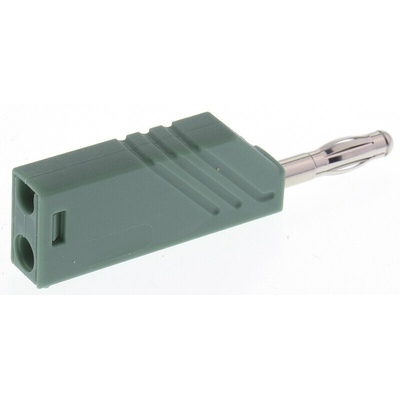

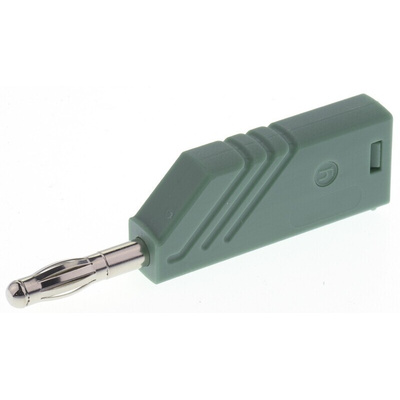

934100104, Hirschmann Test & Measurement Green Male Banana Plug, 4 mm Connector, Screw Termination, 24A, 60V dc, Nickel Plating

LAS N WS Series 4-mm stackable banana plugs

Hirschmann Test and Measurement LAS N WS Series 4mm nickel and gold plated brass cable stackable plug connectors with screw termination and caged spring, simple assembly via the 'Click System', available in a variety of colours. These 4mm stackable plug connectors are suitable for leads with a conductor cross section of 0.5mm² to 1.5mm² and an outer diameter maximum of 3.2mm.

4-mm banana plugs with a hole at the back to connect a second plug with Ø 4 mm
Screw connection
Allowable lead cross-section: 0.5 → 1.5 mm²
Rated Voltage 30 VAC / 60 VDC
CAT I
Rated Current 24A
Spring loaded pin

Measuring and Testing Equipment Plugs 4mm system
