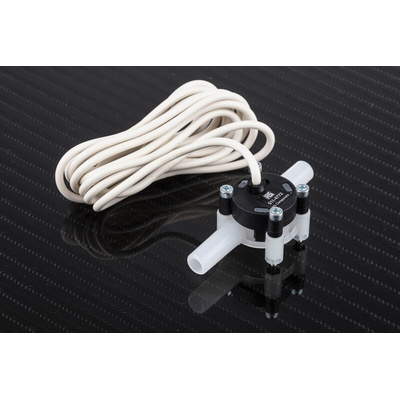

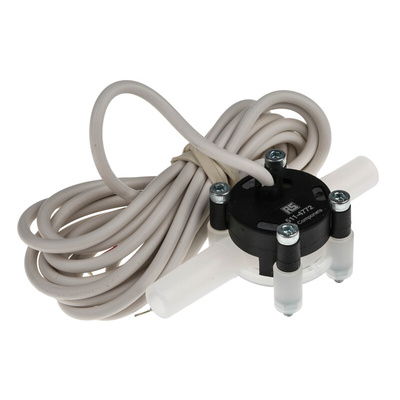

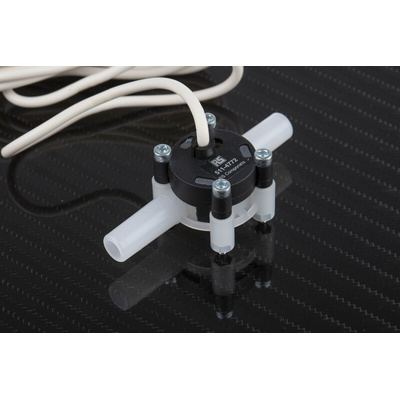

RS PRO Flow Meter for Liquid, 0.6 L/min Min, 10 L/min Max

RS PRO Flow Meter, 0.6 L/min → 10 L/min

This RS PRO flow meter is an accurate and efficient flow measurement solution for dispensing liquids. The device's hardwearing Viton ring makes an effective seal for the flow meter. This high-performance material can withstand temperature extremes and chemical interactions and is known for its durability.

At the centre of the meter is a precision turbine that rotates freely on robust bearings made of sapphire, for long life and reliability. The body of this flow metre is moulded polyvinylidene fluoride (PVDF). This specialist plastic is used in applications where the highest purity is a priority. It also offers resistance to solvents, acids and hydrocarbons.

Like all of our trusted RS PRO range, this product has been tested for safety and consistency by engineers. Flow meters are commonly used in the semiconductor plants.

Features and Benefits

• Flow monitored by liquid media
• Maximum pressure of 10 bar
• Flow meter device
• Minimum flow rate of 0.6 L/min
• Maximum flow rate of 10 L/min
• Supply voltage of 4.5 to 24 V DC
• Pipe diameter range of 3/8 in
• 3/8 push-on connection type
• Maximum pressure of 10 bar
• PVDF (polyvinylidene fluoride) material for purity
• Minimum operating temperature of 0°C
• Maximum operating temperature of 100°C
• Current rating of 10 mA

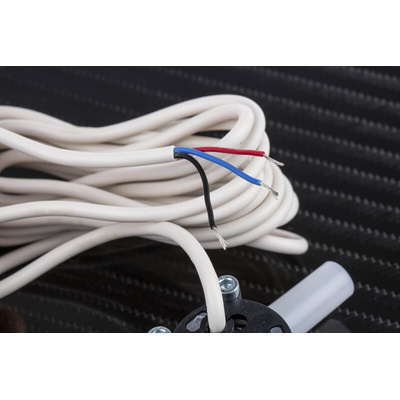

• Supplied with 1.5 m of cable

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Supplied with
type":"Supplied with",

1.5m of cable

RS PRO Instruction Sheet

RS PRO Datasheet
