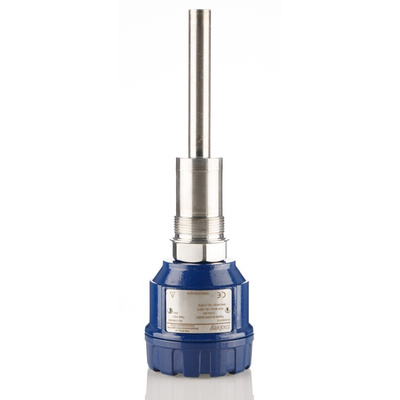

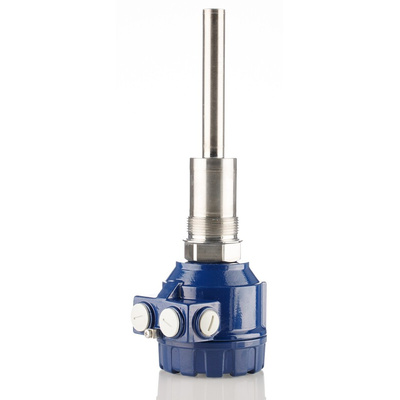

VLSKB131Z, Delta-Mobrey Solids Level Switch Level Switch, Relay Output, Horizontal, Vertical, Aluminium Alloy Body

Mobrey Level Switch

The Mobrey vibrating rod level switch is the perfect solution for single-point level switching in free-flowing solids across a wide density range, from fine powders to grains. A single rod design provides the solution to tuning forks which may become blocked or bridged. The vibration rod is energized and kept in resonance by an electronic circuit. When covered by material, the damping of the vibration is detected by the electronics which initiate the switching of the output relay after a built-in programmable time delay.

Supplied with:
User manual, 2 – 3-pole terminal blocks, 1in sealing, 2 – Pg 16 cable glands.

How do you carry out an installation?
Requiring only a 1in BSP/NPT socket, either on the top or in the sidewall of the silo, the unit is easy to install and simple to the commission.
Prior to installation, it is advised to check the switching function for proper adjustment on a sample quantity of material. The unit may not work with mediums within specified density range but having a very large size of granules or extremely little friction.

WARNING!
Handle device with great care, especially the sensing probe. Any impact on the sensing probe can ruin its resonance system.
A protective shield should be installed if the probe is exposed to falling material or an excessive mechanical load.

Features and Benefits

Standard model with 1 x SPDT alarm relay
It has an operating voltage of 20VAC/DC to 255VAC/DC
Housing standard is aluminium alloy with powder coated
Standard R 1-1/2in BSPT mounting connection

Free-flowing solids and it eliminates the clogging and ridging problems associated with forks
Rod design prevents product bridging
External LED switch status indication display and the probe is maintenance free
Relay output
Compact and rugged design and relay output

Applications

It is designed to provide high or low-level switching in silos or bins containing free-flowing powders and granular materials such as carbon black, sugar, grain, cement, lime and sand with a material bulk density on 50 kg/m3 or more
Vibrating Liquid/Solid
Level Probes - Squings

Certifications

ATEX II 1/2 D
IP67 rated
