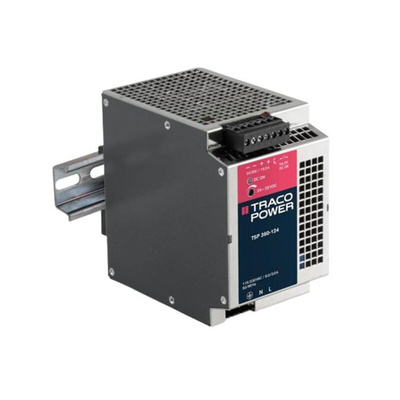

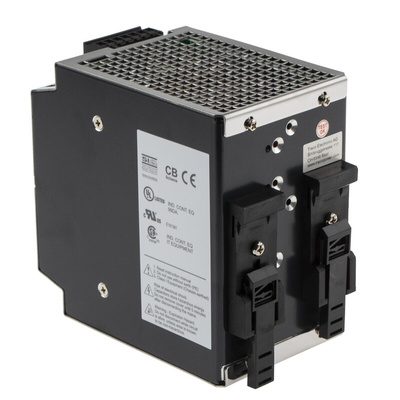

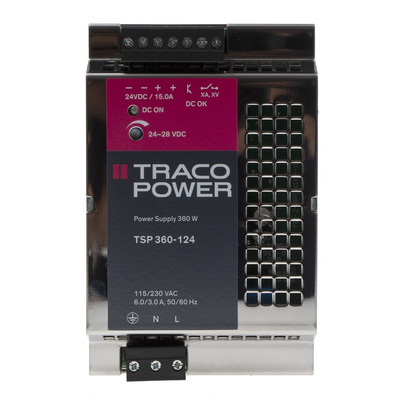

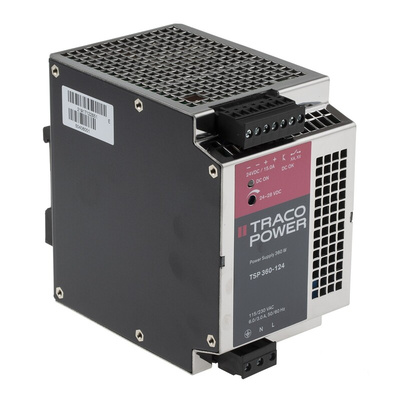

TSP 360-124, TRACOPOWER TSP Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 15A Output, 360W, Блок питания

Traco Power DIN Rail Power Supply, Single Phase, 900,000h MTBF - TSP Series - TSP 360-124

Get an energy boost when you need it with this DIN rail power supply from Traco Power. It has a high power rating of 360W, so you can use it to bring life to everything from automation equipment to motors. A wide input voltage ranging between 85 and 264V AC makes this a universally compatible option. It reduces voltage to a stable 24V DC to suit your appliances. Measuring just 125 (L) x 80 (W) x 125mm (H), this unit's a handy space-saving solution too.

Features & Benefits

• Reliable in harsh settings thanks to an operating temperature range between -25°C and +70°C
• IP20-rated, so it's touch-proof and shielded from objects larger than 12mm
• ±0.5% load regulation means you get a stable power supply
• Remote On/Off function keeps you in control, even from a distance
• LED output indicator for at-a-glance status updates

Applications

• Production lines
• Robotics systems
• Lighting rigs

How efficient is this DIN rail power supply?

It has a high efficiency rating of 87%, so it conserves power and avoids excess heat build-up.

Is this product protected against overcurrent?

Yes, it has in-built overload and short circuit protection to prevent damage to your equipment.

Approvals

UL 60950-1 recognised, UL 508 listed

GS 04-027-2

CSA CERTIFIED FOR CAN/US 219759
