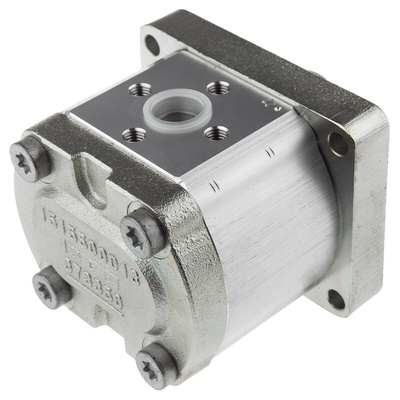

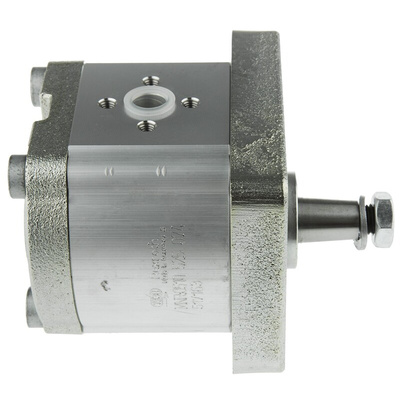

Self Aspirating External Gear Pump, 1:8 Tapered Shaft
New principle for the housing sealing, giving long housing service life
Long service life for seals, even at maximum temperature
Plain bearing for high loads
Monoblock bearing
Simple and robust design
New principle of hydrostatic side clearance compensation
Note
Maximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B20 ≥100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended - this is achievable with a filter retention rate of B10≥100.
Gear Pumps
Direction of rotation is clockwise. Nominal displacement is between 4cm³/rev and 22.4cm³/rev for maximum working pressures. Seal material is NBR (nitrile rubber). Fluid working temperature range is -15°C to +80°C. Recommended fluid is mineral oil and recommended viscosity is 10mm²/s to 300mm²/s.
Техническая спецификация
Gear Pump DrawingGear Pump Instruction LeafletExternal Gear Pumps Series F Data Sheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
