1K3-109, Smartscan 1K3 Series Light Curtain, Sender & Receiver, 36 Beam(s), 40mm Resolution, Световые завесы

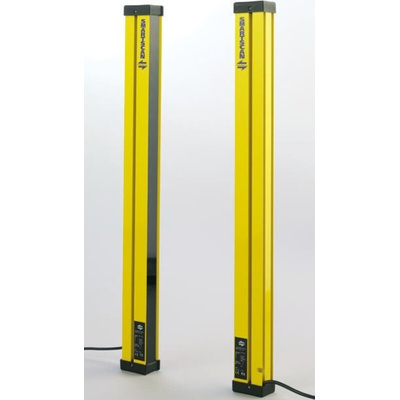

Smartscan Light Curtain

The Smartscan 1000 plus series light curtain is a 40mm resolution light curtain with 36 beams. This product represents a major step forward in light curtain design. The system continually self tests itself and de-energises its output if a fault is detected. This eliminates the need for a ’test’ input. It has far higher safety integrity than those with a single output. The outputs are monitored by the light curtain (short circuit proof) and therefore, are termed ’control reliable’.

Warning:
These devices must be installed and used in accordance with the installation and operating instructions supplied with each product.

Features and Benefits

Simple installation and alignment with diagnostic indicators
No range setting required
Continuously self-testing system, no 'test' input required
Dual channel, fail-safe electronic outputs
All units come with a transmitter, a receiver, and 2 x 5m connecting cables
Waterproof enclosures
Flexible mounting options
Scanning distance is 4m to 10m
Maximum response time is 40ms

Applications

Robots
Packaging machines
Special purpose equipment
Process machinery
Injection moulding machines
Transfer lines
Automated warehouses
Textile machinery
Electronic component assembly lines
Bottling and filling machines

Certifications

BS EN 61496-1 type 2
BS IEC 61496-2 type 2
EN 62061 - SIL 2
EN ISO 13849 PL d
