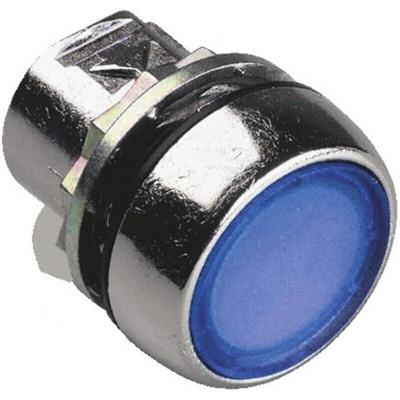

800FM-LF6, Allen Bradley 800F Series Blue Illuminated Momentary Push Button Head, 22mm Cutout, IP65

Pushbutton Operators

Finished with corrosion resistant anodised plating
Low front of panel profile
Multi-coloured types contain 1 cap of each colour

Allen Bradley Push Button Head, IP65 Rating, 22.5mm Diameter- 800FM-LF6

Choose this push button head from Rockwell Automation's Allen Bradley range to operate a switch on your control panel. The body is metal with anodised plating to make it resistant to corrosion and the button is made from wear-resistant plastic to stand up to repeated use. As it's blue in colour, this is a versatile choice for your control panel. The momentary action means the unit only actuates the switch while it's being actively pressed. This makes it useful for manually operating machines, lights and doors.

• IP65 rating means it's dust-tight and resistant to jets of water from any direction
• Round button with a 22mm cutout size for compatibility with standard panels
• Resistant to shock and vibration for use on or near to moving machinery
• Wide operating temperature range between -25°C and +70°C for use in demanding environments

Standards and Certifications

• UL
• UR
• CSA
• CCC
• CE

Can this push button head be illuminated?

Yes, this push button head is suitable for illumination with a light block to improve its visibility on your panel.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
