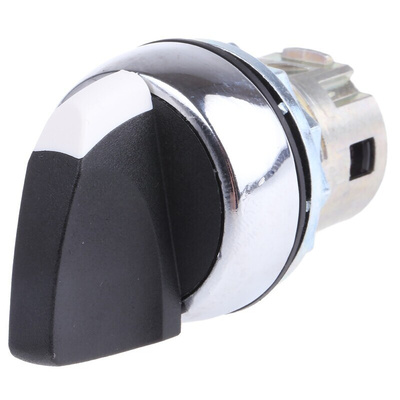

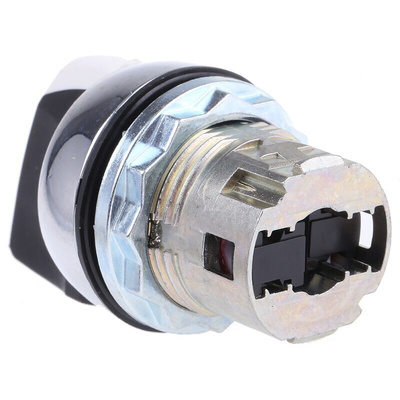

800FM-SM32, Allen Bradley 800F Series 3 Position Selector Switch Head, 22mm Cutout, Black Handle

Selector Switches

Integral position indicator
90 degree knob offset option for use in vertical mount enclosures
60 degree switching angle
Ergonomic thumb grip
Non illuminated, black with white insert operator
Select required contact configuration separately

Allen Bradley Selector Switch Head, 3 Positions, 45° Angle Of Throw - 800FM-SM32

This selector switch head from Rockwell Automation's Allen Bradley range lets you adjust the operating status of your device between three different states. It features an industry-standard cutout diameter of 22mm, so you can easily fit it into your existing control panel. For durability, its hard-wearing metal housing is resistant to hard impacts. This housing also comes with an anodised plating finish, which makes it resistant to corrosion and suitable for use in damp or humid conditions. Thanks to its ergonomic thumb grip, this switch supports frequent operation without straining your hands.

• IP66 rating indicates it's protected against dust and high-pressure jets of water
• Single-person panel installation design for quick mounting
• White-coloured position indicator for easy configuration of operating status

Standards and Certifications

• CE
• UL
• CSA
• CCC

How does this latching actuation switch work?

When you turn the selector switch, the connected electric circuit is activated and remains on even when you let go of the knob. To reset it, simply turn the switch in a different direction.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
