800FP-MT44PX01S, Allen Bradley Panel Mount Emergency Button - Twist to Reset, 22.5mm Cutout Diameter Mushroom Head

Allen Bradley E-Stop Operator Assembly

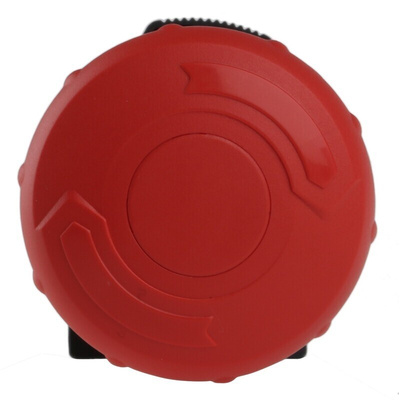

The Allen Bradley 800F series emergency stop pushbutton has a red mushroom style head with a diameter of 40mm. It has a single pole single throw (SPSS) contact configuration. The button is made of plastic material. It is designed and manufactured to meet the demanding performance specifications. Using state-of-the-art solid modelling techniques and finite element analysis, each component built into 800F pushbuttons is optimized for durability and safe performance.

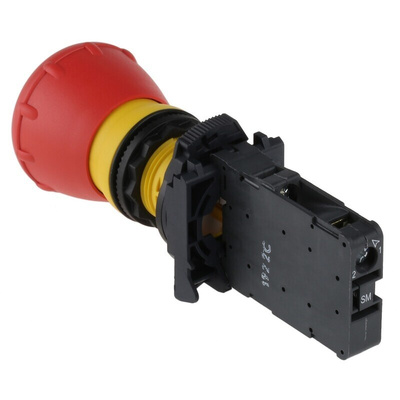

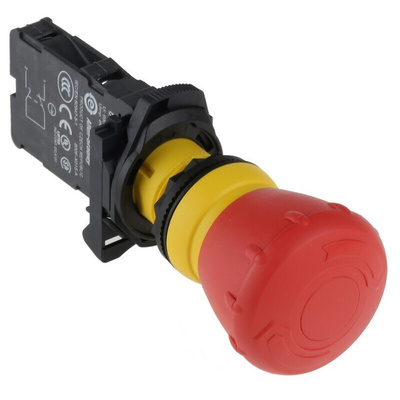

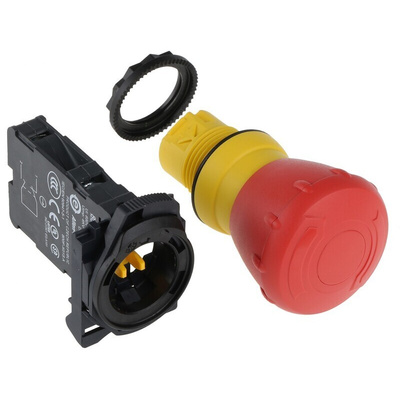

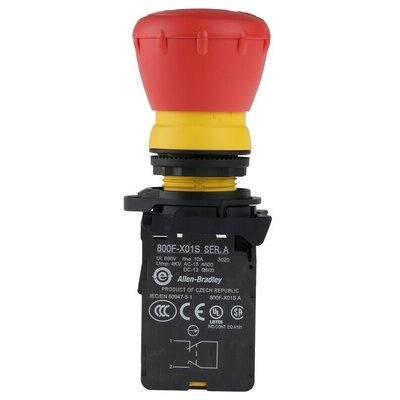

All the items you need for a working E-Stop in the convenience of a single stock number. The assembly consists of a 40mm twist to release head, retaining latch and a self-monitoring contact block.

800F Series pushbuttons & Indicators
The 800F range of pushbuttons is designed and manufactured to meet demanding performance specifications. Using state-of-the-art solid modelling techniques, each component built into 800F pushbuttons is optimized for durability and safe performance., Designed to conform with the industry-standard 22mm hole fixing requirements, the 800F range covers the following products.

Illuminated/non-illuminated push-buttons and mushroom operators
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self-monitoring contact block
Selection of silicon boots are available
Plastic enclosures
Up to six circuits per operator
Metal operators offer ruggedness and durability
IP66 protection class
Meets CE/UL/CSA standards and CCC (Chinese standard) compliant
Finished with corrosion-resistant anodized plating
Easy to install operators provide significant time and cost savings

Features and Benefits

Non-illuminated
Low front of panel profile
Single person panel installation
Panel cut-out diameter of 22.5mm

Applications

OEMs
Panel builders, contractors,
Industrial machines and equipment
Control panels and control stations
Emergency circuits, alarm and signal equipment
Traction equipments

Certifications

IP66 rated
IP65 rated
UL listed
CSA certified
CCC certified
CE certified
