800F-1YM1, Allen Bradley Control Station Switch - SPST, IP66

E-Stop Stations

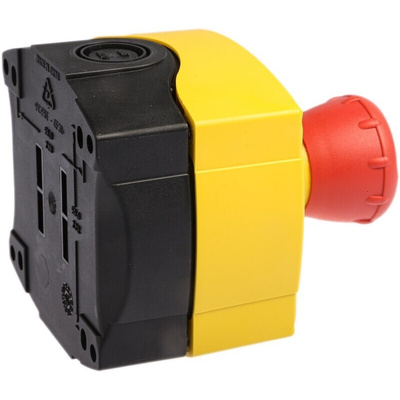

Yellow/black plastic enclosure
Fitted with 40mm pushbutton
Twist to release or key release

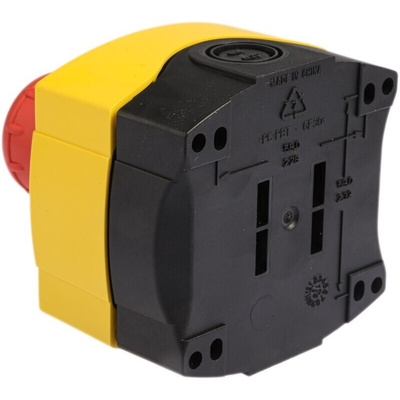

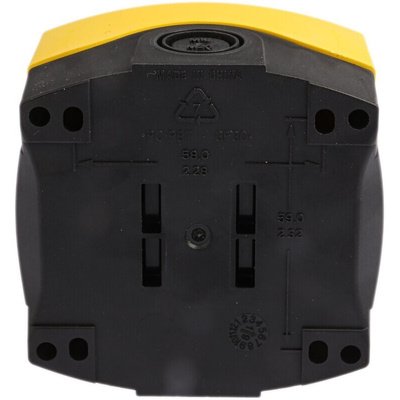

DIN rail moulding in base of enclosure for contact block mounting
Fitted with 1 N/C. contact block
For additional contact blocks: N/C - stock no. 511-8370 ; N/O - stock no 511-8386

Allen Bradley Control Station Switch, NC - 800F-1YM1

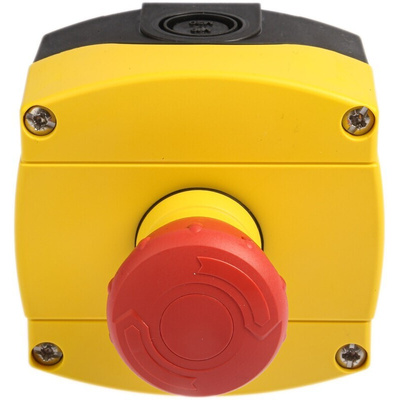

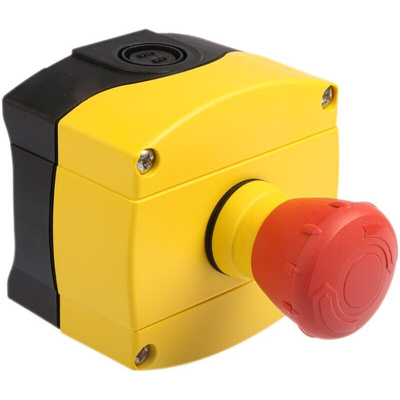

Keep machines and workers safe with this control station switch from Rockwell Automation's Allen Bradley range. The red, mushroom-shaped button is easy to locate and push in an emergency, while the bright yellow unit makes it quick to find on any control panel. The switch's twist-to-release function ensures machinery can't be accidentally turned back on when hazards are being investigated or removed. Housed in a tough plastic case with an IP66 (ingress protection) rating, it's dust-proof and water-resistant for use in harsh industrial environments.

Features and Benefits

• Industry-standard 22mm hole fixing with a DIN rail moulding for flexible mounting options
• Direction arrows engraved on button for clear and easy operation
• Ready-fitted with an NC (normally closed) contact block for safe use

Standards and Certifications

• CE (Conformité Européene)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

Is this control station switch sustainable?

Yes – this control station switch uses durable metal operators for a long lifespan. Many of the parts, such as the push button (511-8128) and contact blocks (511-8370 and 511-8386) are easily replaceable.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
