800F-PX10, Allen Bradley 800F Series Contact Block, 600V, 1NO, Контактный блок

Contact Blocks

Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.

CE Marked in compliance to relevant European Directive

Note

In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

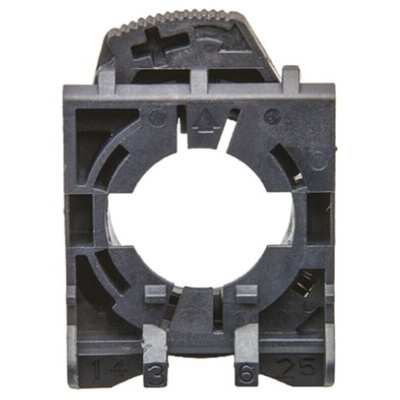

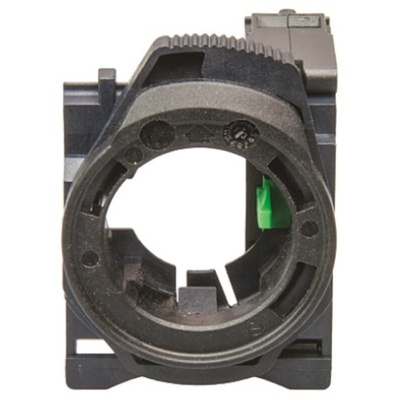

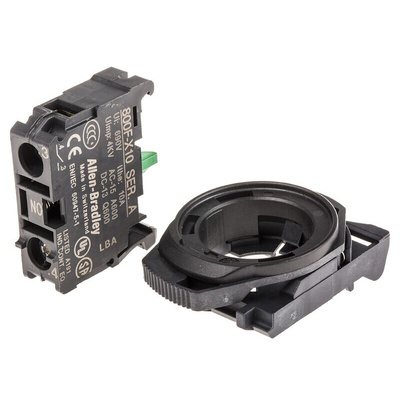

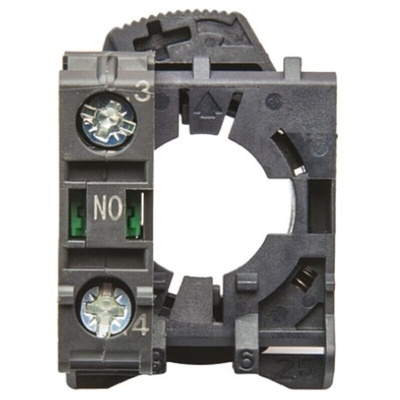

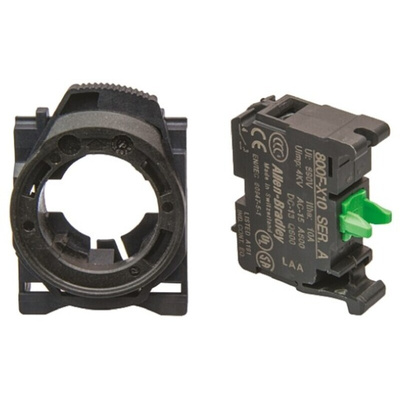

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308

Allen Bradley Contact Block, 600V, NO - 800F-PX10

Use this Allen Bradley contact block from Rockwell Automation to complete electronic circuitry in your workplace. The device is designed to increase safety and productivity by highlighting machine-based hazards. It features colour-coded plungers, making it easy to identify different circuits and reduce downtime. The solid-model design offers durability for a long service life. This contact block is divided into two parts for more reliable switching between on and off.

Features & Benefits

• Plastic latch with durable hook-and-snap interface for easy installation
• Simple screw terminals make secure connections with machinery
• Corrosion-resistant anodised plating safeguards the unit against external elements

Standards and Certifications

• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• CSA (Compliance, Safety, Accountability) standards
• CCC (Chinese standard) compliant

What's the difference between NO (normally open) and NC (normally closed) contacts?

NO is when the contact switch remains open until an action has been performed. This means an action is required in order to close the switch and let the circuit conduct electricity. NC contacts are the opposite, remaining closed until an action is completed and then opening the switch and breaking the circuit connection. This contact block is NO.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
