800F-NX-BX01, Allen Bradley 800F Series Contact Block, 600V, 1NC, Контактный блок

Contact Blocks

Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.

CE Marked in compliance to relevant European Directive

Note

In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

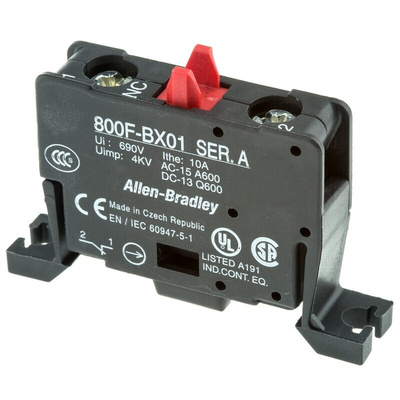

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308

Allen Bradley Contact Block, 1NC Contact Configuration, Screw Terminal - 800F-NX-BX01

Looking for a reliable switching solution for your push button? Turn to this contact block from Rockwell Automation's Allen Bradley range. When you activate the button, the contacts of this component open, allowing current to flow through the electric circuit. For ease of assembly, it's designed for use with push buttons from the 800F series. Vivid red plungers can be colour-coded for quick identification of attached circuits. As this unit has a contact durability of 10,000,000 cycles, you can rely on it for longevity, even for demanding settings.

• Voltage rating of 600V AC to withstand high voltage systems
• Screw terminals for stable electrical connection
• Base mounting design for ease of installation in an enclosure
• Resistant to shock and vibration for added durability
• Silver nickel contacts are corrosion-resistant for extended service life

Standards and Certifications

• CE Marked
• UL 508
• EN 418
• CSA
• CCC

Is this contact block finger-safe?

Yes, this unit has a IP2X rating, meaning it's finger-safe and you can safely use it manually without the risk of electric shocks.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
