800F-BX10, Allen Bradley 800F Contact Block - 1NO 600 V, Контактный блок

Contact Blocks

Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.

CE Marked in compliance to relevant European Directive

Note

In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

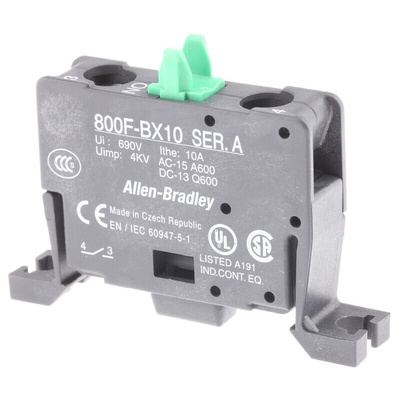

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308

Allen Bradley Contact Block, 1 NO, 600 V - 800F-BX10

Reliably operate your machinery with this contact block from Rockwell Automation's Allen Bradley range. It's compatible with 800F Series latch fittings (511-8291 and 511-8308) and has multiple contact points for efficient switching and contact wiping. Screw terminations provide a secure connection for your wiring, while hook-and-snap connectors mean you can attach devices quickly. Use this contact block with switches or breakers to safely control the electrical circuits powering your critical and hazardous machinery.

Features and Benefits

• Strong, corrosion-resistant plastic casing protects the contacts, making it suitable for use in harsh environments
• Can be base-mounted in both plastic and metal enclosures for versatile use
• Colour-coded plungers ensure different circuits are easily identified and reduce maintenance downtime
• 1NO (normally open) configuration for a quick and simple set-up

Standards and Certifications

• CE (Conformité Européene)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)
• IEC 60947-5-1 (International Electrotechnical Commission)

What voltage rating does this contact block have?

This Allen Bradley contact block has a maximum voltage rating of 600V, so it's suitable for a range of light-industrial applications such as consumer electronics and home appliances.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
