800F-PN7W, Allen Bradley 800F Light Block - White, 240 V, Световой блок

LED Modules

Superior brightness
Extremely visible LED
Leakage current resistant
100000 hours of continuous operation
Can be used on any 800F illuminated operator
Supplied complete with latch: plastic and metal options available

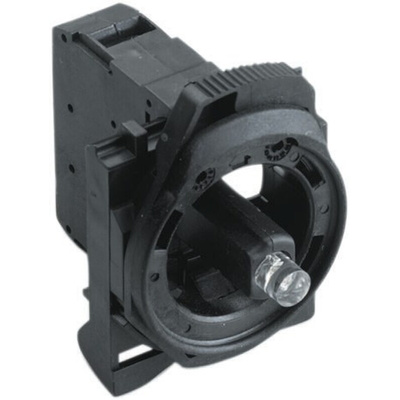

Allen Bradley Light Block, LED Illumination, Screw Terminals - 800F-PN7W

Make light work of push button illumination with this light block from Rockwell Automation's Allen Bradley range. It features a bright white LED that activates when you press the connected switch, so you'll never be in the dark about your device's status. As it's compatible with any pilot device from the 800F series, you can easily configure your manual control buttons for use in areas where visibility is poor. Thanks to its mechanical durability of 100,000 hours, you can rely on this product for a long service life.

Features & Benefits

• Supplied complete with latch for easy installation
• Resistant to leakage current for efficiency and user safety
• Screw terminal method for simple and secure wiring
• Devices in the 800F series use a standard cutout diameter of 22mm for straightforward integration into your existing setup
• Compatible with cables ranging in size from 18 to 12AWG for flexible wiring options

Standards and Certifications

• CSA
• CCC
• CE
• UL
• UR

What's the voltage rating of this light block?

For easy compatibility with mains power, this light block has a voltage rating of 240V AC.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
