800F-1PM, Allen Bradley Grey Plastic 800F Push Button Enclosure - 1 Hole 22mm Diameter, Корпус

Plastic Pushbutton Enclosures

IP66, NEMA 4/4x/13
UL listed, CSA certified
Metric knockouts
Can be used with base mounted or latch mounted contact blocks

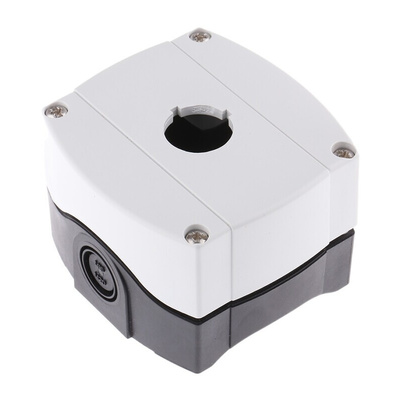

Allen Bradley Plastic Pushbutton Enclosure, 22mm Cutout - 800F-1PM

Use this plastic enclosure from Rockwell Automation's Allen Bradley range to secure and protect pushbuttons in harsh industrial environments. It provides resistance against dust, moisture and grease, and helps to extend the service life of a pushbutton. The enclosure is supplied with a pre-moulded mounting hole for convenient and quick assembly. This one-hole unit is ideal for use with an emergency-stop button in motor control applications. Its high level of protection makes it a good choice for chemical and offshore industries.

• IP66 (ingress protection) rated enclosure is completely dust-tight and water-resistant • Manufactured from hardwearing plastic for durability• Anodized plating finish is resistant to corrosion for an extended service life

Standards and Certifications

• CE (Conformité Européenne)• CSA (Canadian Standards Association)• UL (Underwriters' Laboratories)

How do you mount a pushbutton inside this enclosure?

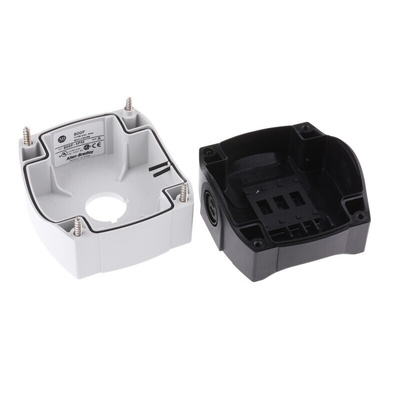

You can easily mount a pushbutton inside this enclosure by unscrewing its two separate parts. Once you've inserted your button, simply screw the enclosure together again.

Which contact blocks are compatible with this enclosure?

You can use this enclosure with both base-mounted and latch-mounted contact blocks.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
