800F-2PM, Allen Bradley Grey Plastic 800F Push Button Enclosure - 2 Hole 22mm Diameter, Корпус

Plastic Pushbutton Enclosures

IP66, NEMA 4/4x/13
UL listed, CSA certified
Metric knockouts
Can be used with base mounted or latch mounted contact blocks

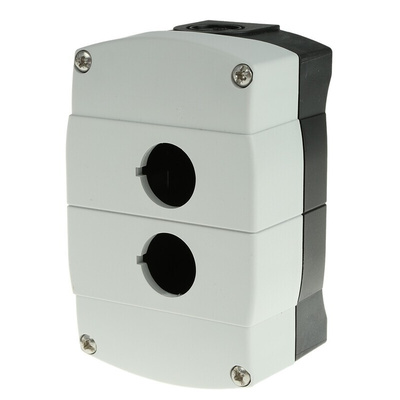

Allen Bradley Push Button Enclosure, 124mm Height, Plastic Material - 800F-2PM

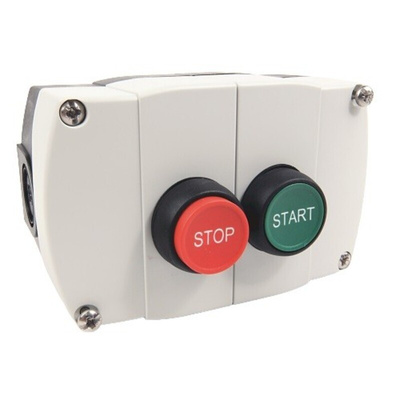

Keen to safely shield your switches in challenging working conditions? Get the job done with this push button enclosure from Rockwell Automation's Allen Bradley range. It has an IP66 rating, meaning it's fully protected against dust and high-pressure water jets. Thanks to its plastic body, it's resistant to impact and corrosion, so you can trust it holds its ground in harsh environments. Two pre-cut holes mean it accommodates up to two buttons to put machine control at your fingertips. Integrating this unit into your setup is easy as can be, as it works with push buttons that need a standard cutout diameter of 22mm.

Features & Benefits

• Compact dimensions of 124 (H) x 79 (W) x 58mm (D) mean it's a sure fit in tight spaces
• Suitable for use with base-mounted or latch-mounted contact blocks for versatility
• Four included screws hold the front panel in place for protection against heavy vibrations
• Optional legend plate (511-8689) for easy labelling and identification of buttons

Standards and Certifications

• UL
• CSA
• CE

Does this enclosure come with knockouts?

Yes, this unit comes with M16/M20-sized knockouts, cutting down on preparation time so you can get to work quickly.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
