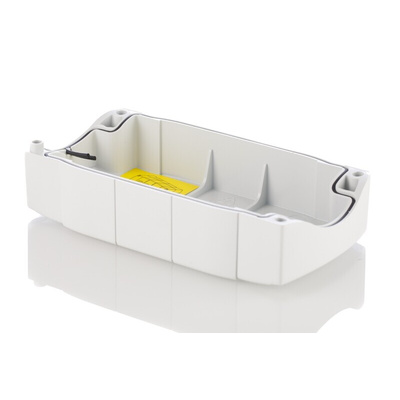

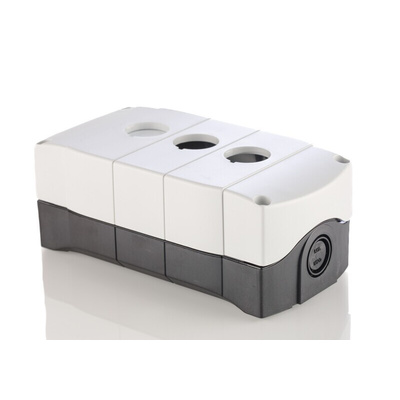

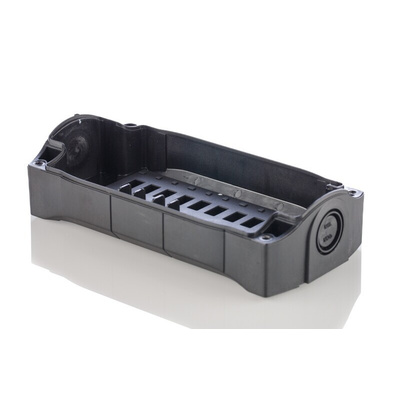

800F-3PM, Allen Bradley Grey Plastic 800F Push Button Enclosure - 3 Hole 22mm Diameter, Корпус

Plastic Pushbutton Enclosures

IP66, NEMA 4/4x/13
UL listed, CSA certified
Metric knockouts
Can be used with base mounted or latch mounted contact blocks

Allen Bradley Plastic Pushbutton Enclosure, 3 x 22mm Cutout - 800F-3PM

Choose this plastic enclosure from Rockwell Automation's Allen Bradley range to protect pushbuttons in harsh environments. Its cutouts offer protection for up to three round buttons and it's compatible with both base-mounted and latch-mounted contact blocks. The enclosure is made from high-grade thermoplastic for reliable strength and abrasion resistance. Its IP66 (ingress protection) rating means it stops dust, moisture and chemicals from interfering with the electrical function of pushbuttons, to improve workplace safety. Use this enclosure in factories and other heavy-duty industrial workplaces.

• Designed to worldwide standards so suitable for international use• High resistance to vibrations keeps buttons securely in place, for reliable performance• Grey in colour to contrast with pushbuttons

Standards and Certifications

• CE (Conformité Européenne)• CSA (Canadian Standards Association)• UL (Underwriters' Laboratories)

What types of pushbutton operators are compatible with this enclosure?

This enclosure accepts both illuminated and non-illuminated low-voltage pushbuttons that are 22.5mm in diameter.

Is this enclosure supplied with mounting holes?

Yes, this enclosure has mounting holes to make it quick and easy to assemble.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
