800F-4PM, Allen Bradley Grey Plastic 800F Push Button Enclosure - 4 Hole 22mm Diameter, Корпус

Plastic Pushbutton Enclosures

IP66, NEMA 4/4x/13
UL listed, CSA certified
Metric knockouts
Can be used with base mounted or latch mounted contact blocks

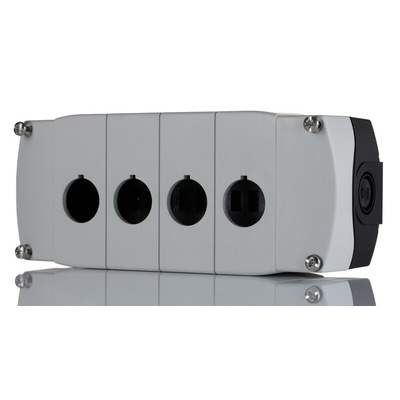

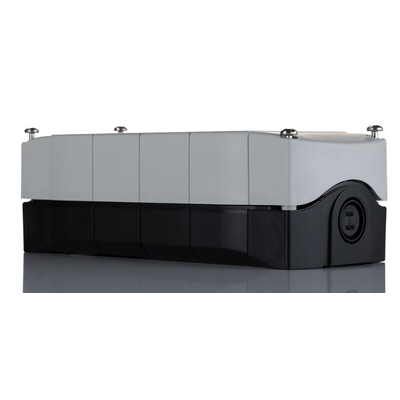

Allen Bradley Push Button Enclosure, Plastic Material, 186mm Height - 800F-4PM

Keep your push buttons safe and sound with this enclosure from Rockwell Automation's Allen Bradley range. Its plastic body is resistant to impact and wear, so you can trust it to protect your switches in the long term. Harsh work environments are no match for the unit, as its IP66 rating means it shuts out dust and shrugs off high-pressure water jets. It's a cinch to feed your wiring through this component thanks to its M16/M20-sized knockouts.

Features & Benefits

• Comes with four pre-cut holes to accommodate four push buttons and make good use of space

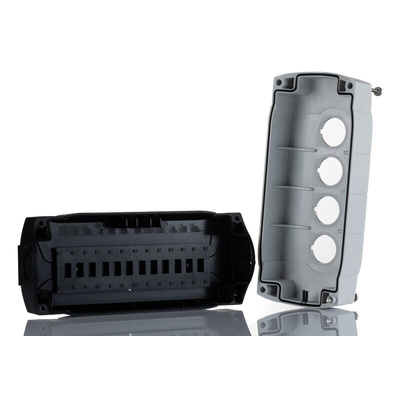

• Front panel secures in place with four screws for protection against vibration
• Designed for push buttons that need a standard cutout diameter of 22mm to ensure broad compatibility
• Compact body measurements of 186 (H) x 79 (W) x 58mm (D) for ease of installation in crowded setups

Standards and Certifications

• CE
• CSA
• UL 508

Can I label the push buttons in this enclosure?

Yes, you can use snap-in legend plates (511-8689) with this unit for clear labelling and simple identification of your switches.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
