800F-1YM, Allen Bradley Yellow Plastic 800F Push Button Enclosure - 1 Hole 22mm Diameter, Корпус

Plastic Pushbutton Enclosures

IP66, NEMA 4/4x/13
UL listed, CSA certified
Metric knockouts
Can be used with base mounted or latch mounted contact blocks

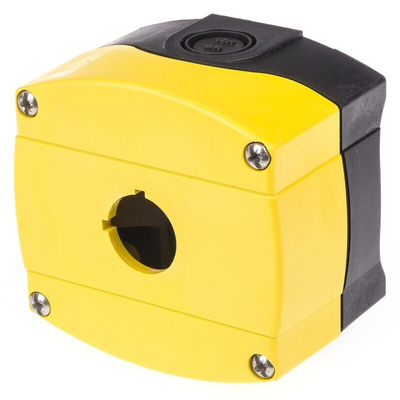

Allen Bradley Push Button Enclosure, Yellow Colour, 85mm Height - 800F-1YM

To prevent harsh industrial conditions from pushing your buttons, reach for this enclosure from Rockwell Automation's Allen Bradley range. You can put it to the test bolstering switches in demanding industrial conditions, as its IP66 rating means it's dust-tight and protected against high-pressure water jets. The unit's bright yellow body stands out clearly, so it's sure to catch your eye in busy work environments. A pre-made cutout means the product is ready to house your switch straight away, so no prep is needed. As it accommodates standard 22mm push buttons, this is a go-to choice for commonly used devices.

Features & Benefits

• Suitable for use with latch-mounted and base-mounted contact blocks for versatility
• Supplied with M16/M20-sized knockouts for ease of cabling
• Compatible with legend plates (511-8689) for simple switch labelling
• Compact dimensions of 85 (H) x 89 (W) x 58mm (D) for installation in tight spaces

Standards and Certifications

• UL
• EN 60947-1
• CSA

What material is this enclosure made of?

This enclosure is made of hard-wearing plastic, so it's resistant to impact and corrosion for durability in harsh environments.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly

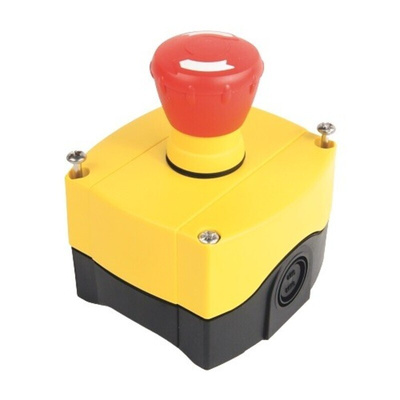

• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
