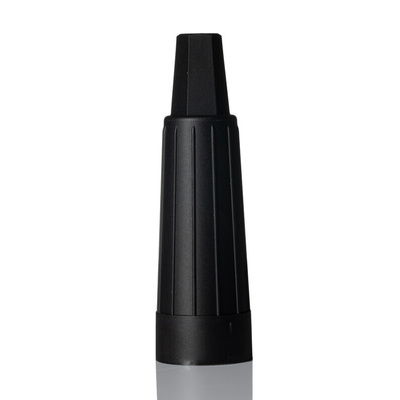

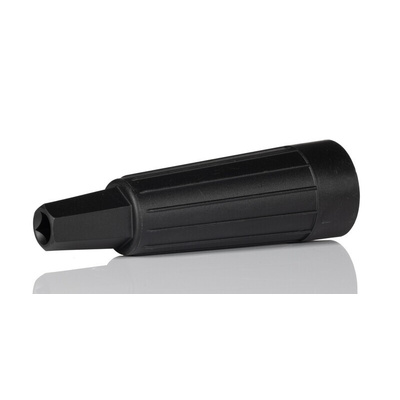

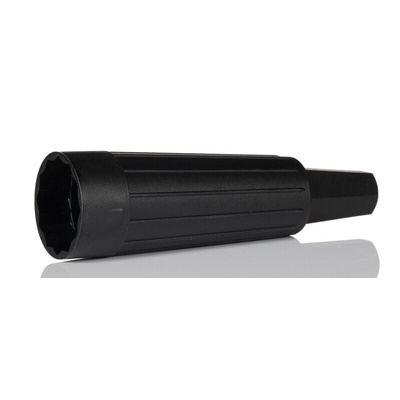

800F-AW2, Allen Bradley Mounting Tool

Fitting Tool

Simplifies and speeds up assembly of 800F operators
Durable hand-friendly design
For use with plastic or metal mounting rings
Makes assembly so simple and so fast !!!

Allen Bradley Mounting Tool, Octagonal Wrench, For Use With 22mm Round Operators - 800F-AW2

Install your 800F-series push button or indicator in a flash with this handy mounting tool from Rockwell Automation's Allen Bradley range. It's suitable for tightening both metal and plastic mounting rings, so there's no need to search out multiple tools. To get the job done quickly, simply turn the tool by hand to tighten the ring until you have the correct fit. Push buttons in the 800F range fit into a standard 22mm mounting hole, so you can incorporate them into your setup without a hitch.

Features & Benefits

• Ergonomically designed for a comfortable grip
• Sturdy plastic construction for durability and resistance to wear
• Works with 800F-series illuminated and non-illuminated push buttons for versatility

Standards and Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Is the 800F series suitable for use in environments that need frequent cleaning?

Yes, many operators in the 800F series have an IP69K rating, meaning they're dust-tight and can withstand high-temperature and high-pressure water jets. This makes them ideal for use in areas where hygiene is important, such as food production environments.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability

Instruction Sheet - 800F-AW2
