800F-11WE166, Allen Bradley Legend Holder for Use with 800F Series, On

Legend Plate With Carrier

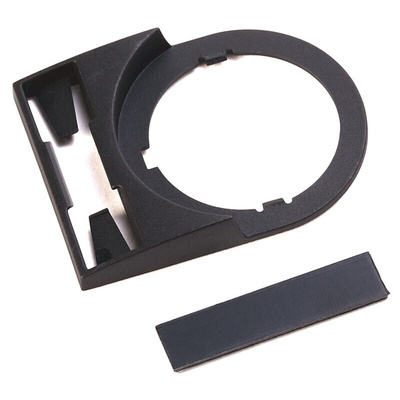

Legend plate carrier with snap in legend.
Choice of standard engraved texts.
30 x 40 mm legend carrier

Allen Bradley Legend Plate, Pre-Engraved With ON, Snap-In Mounting - 800F-11WE166

Need an easy way to tell what's what on your control panel? Keep your push buttons clearly labelled with this legend plate from Rockwell Automation's Allen Bradley range. As it's pre-engraved with the standard text ON, you won't go off in all directions trying to find the switch you need. For installation in a snap, simply slide it into place behind any illuminated or non-illuminated push button, indicator light, signalling lamp or selector switch from the 800F series. The plate sits flush against your control panel, so it won't interfere with your normal machine operations.

Features & Benefits

• Crisp black-on-white lettering is easy to read at a glance
• Snap-in legend plate makes it easy to change labels as needed
• Supplied with a frame and plate, so you have everything you need to clearly identify your controls

Standards and Certifications

• CCC
• UL
• CSA
• UR
• CE

What size is this product?

For easy compatibility with your existing equipment, the frame features a standard cutout diameter of 22mm. The plate's compact dimensions of 40 (H) x 30mm (W) mean it fits comfortably into place, even when space is tight.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability

800F Series Legends Datasheet
