RS PRO AA Battery Holder, Coil Spring Contact, Держатель

RS PRO AA Battery Holder, Coil Spring Contact

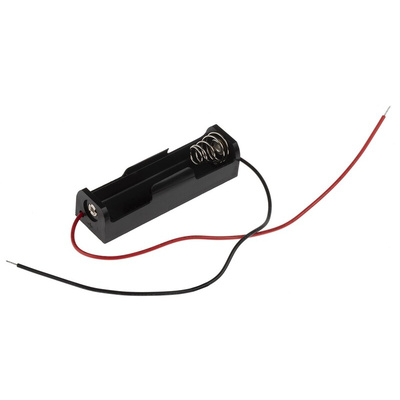

This battery holder from RS PRO contains one AA battery cell for insertion into battery-operated devices. It has a coil spring contact made of nickel-plated steel and a black polypropylene (PP) body for durability and resistance to chemicals and shock.

The holder has dimensions of 57.2 (L) x 16.4 (W) x 14.8 mm (D). It comes with two unterminated leads (one black and one red) that can be soldered or crimped for connection to other wires or a circuit board. For increased versatility, you can also connect it to two different terminals, such as a ferrule or a press stud battery contact. It also has pre-drilled holes on the base for easy chassis mounting.

Part of the RS PRO range, this product is tested for safety and meets international electrostatic control standards. This battery holder is commonly used in toys and other devices that require a single AA battery cell.

Features and Benefits

• Battery holder for one AA battery
• Dimensions of 57.2 mm (L) x 16.4 mm (W) x 14.8 mm (D)
• Nickel-plated steel coil spring terminal contact
• Black polypropylene (PP) body
• Two colour-coded unterminated leads
• Chassis mount with three mounting holes on the base
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
