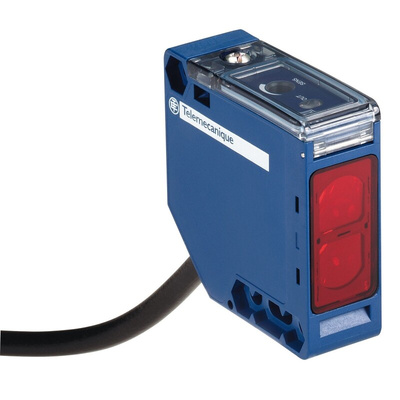

XUK9ARCNL2, Telemecanique Sensors Retroreflective Photoelectric Sensor, Compact Sensor, 5 m Detection Range, Фотоэлектрический датчик

Compact 50 x 50, Relay Output

OsiSense XU offers a full range of diffuse, Background Suppression (BGS), polarised reflex, laser reflex and thru-beam in the 4 most popular form-factors worldwide. They are suitable for many applications such as material handling, packaging, labeling, assembly and food and beverage.

Service alarm output
Sensing distance 7000 mm
Response time 25ms
LED alignment and output indicators

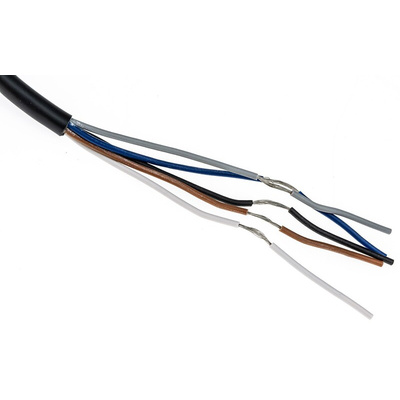

2m pre-cabled
Mounting brackets available (512-4606 / 8787944)

Telemecanique Sensors Photoelectric Sensor, Relay Output Type, 3A Maximum Current - XUK9ARCNL2

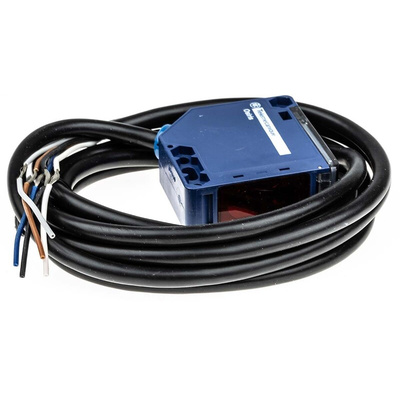

Choose this photoelectric sensor from Telemecanique Sensors to sense the presence of objects in your industrial environment. It's a versatile choice for low-power applications due to its supply voltage range of 24 to 240V AC/DC. A 2-metre cable is on hand to make positioning the unit easy. For diagnostics at a glance, there are LEDs that display the status of your operations. Thanks to its tough PBT housing, this device stands up to bumps and scratches in demanding settings, so you can be sure of its long service life.

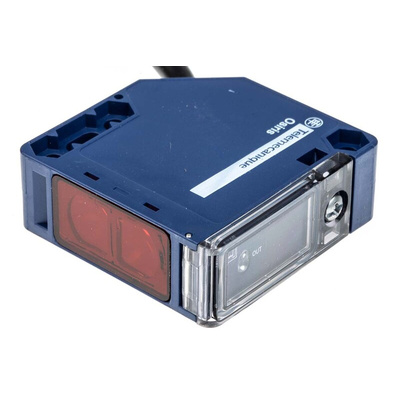

• Compact dimensions 50 (D) x 50 (H) x 18mm (W) make it a space-efficient choice
• IP65 rating means it's completely dust-tight and resists low-pressure water jets from all directions
• PMMA scratch-resistant lens ensures long-term performance
• Double insulation protects users against shocks

Applications

• Automotive manufacturing
• Pharmaceutical industry
• Process and packaging plants

Can I use this sensor in demanding conditions?

Yes. This device operates in a broad temperature range of -25°C to +55°C, so it withstands harsh industrial settings.

What does retroreflective detection mean?

Retroreflective detection involves a light beam being sent between a transmitter and receiver. Sensors like this one detect when the light beam is interrupted by an object and switch to let the control unit know.
