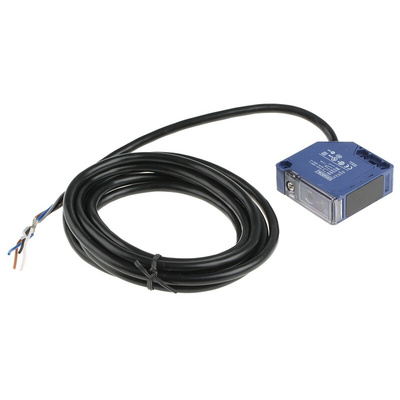

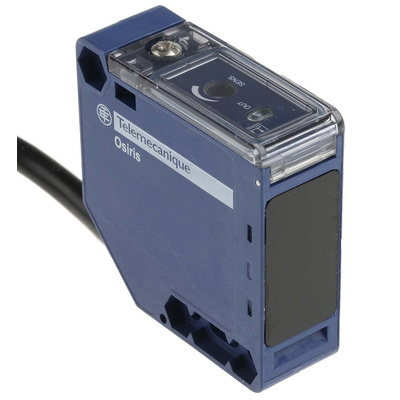

XUK5ARCNL2, Telemecanique Sensors Diffuse Photoelectric Sensor, Compact Sensor, 1 m Detection Range, Фотоэлектрический датчик

Compact 50 x 50, Relay Output

OsiSense XU offers a full range of diffuse, Background Suppression (BGS), polarised reflex, laser reflex and thru-beam in the 4 most popular form-factors worldwide. They are suitable for many applications such as material handling, packaging, labeling, assembly and food and beverage.

Service alarm output
Sensing distance 7000 mm
Response time 25ms
LED alignment and output indicators

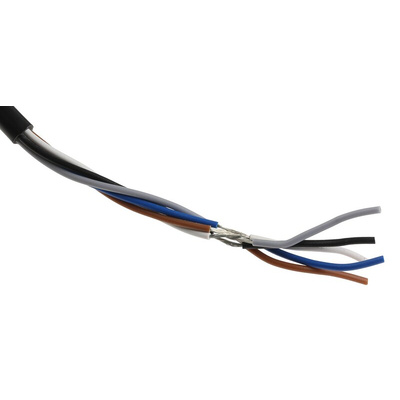

2m pre-cabled
Mounting brackets available (512-4606 / 8787944)

Telemecanique Sensors Photoelectric Sensor, Relay Output Type, Infrared Diffuse Detection System Type - XU Series - XUK5ARCNL2

Do you need a surefire way to monitor the position of your workpieces? This five-wire photoelectric sensor from Telemecanique Sensors keeps its eyes on the prize. By bouncing infrared waves off surfaces, it allows you to establish the presence, absence and distance of objects. A low weight of 35g means adding the unit won't put strain on your setup. And thanks to its durability of 500,000 cycles, you can rest assured it's highly reliable.

Features & Benefits

• Maximum supply voltage of 240V indicates it's suitable for powerful electrical systems
• Space-saving size of 50 (D) x 50 (H) x 18mm (H) lets you squeeze it into tight work areas
• Tolerates harsh conditions thanks to its broad operating temperature range of -25°C to +55°C
• Yellow and green LEDs allow for easy monitoring of supply and output state
• PBT housing is impact-resistant for protection in heavy-duty applications

Applications

• Material handling
• Robotics systems
• Food production
• Pharmaceutical industry

Is this sensor water-resistant?

Yes – an IP65 rating indicates that it's fully protected against dust and low-pressure water jets from any direction.
