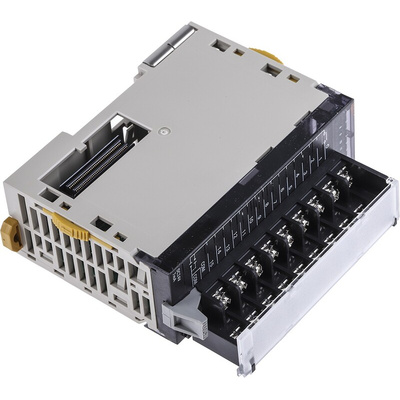

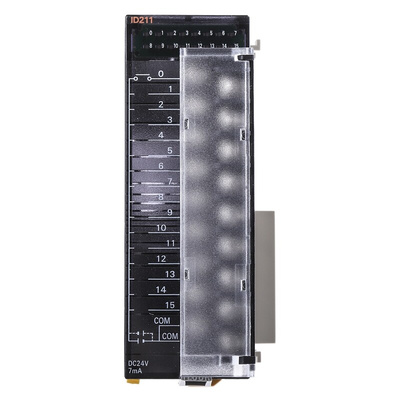

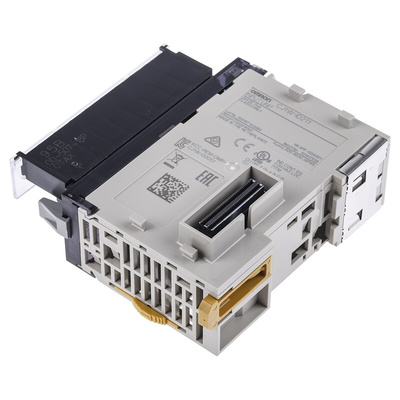

CJ1W-ID211, Omron SYSMAC CJ Series Series PLC I/O Module for Use with SYSMAC CJ Series, Digital, Модуль

Omron PLC Extension Module

The Omron programmable logic controller(PLC) extension I/O module is a 16 digital input unit. This device enables digital I/O, analogue I/O and communication modules to clip together to the right of the CPU in any combination to increase the system throughput. Its input voltage rating is 26.4VDC with 3mA output current. Modules can be connected to the system as a part of an expansion assembly to receive the ON/OFF signals from external devices into the PLC system to update I/O memory in the CPU Unit. All the modules have removable screw terminal blocks for I/O connections, except screwless (SL). A wide range of CJ series input units is available featuring high-speed input and suitable for use with SYSMAC CJ series.

Features and Benefits

High-speed inputs available
ON response rime: 15μs
OFF response time: 90μs
This 24VDC model can be connected to devices with either NPN or PNP outputs
There is no need to select the polarity
A digital filter in the unit can be set between 0ms and 32ms to reduce the influence of external noise
Either a Fujitsu or MIL connector interface can be used
Terminal block conversion units are available, making it easy to connect to external devices

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

CE
cULus certified
Lloyd certified
NK certified
