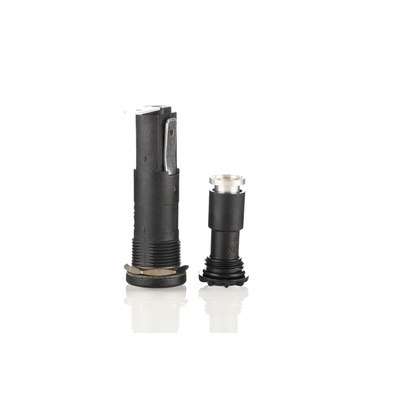

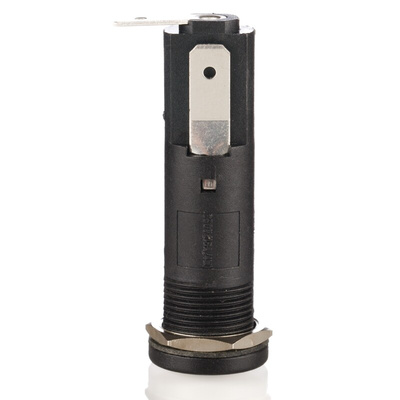

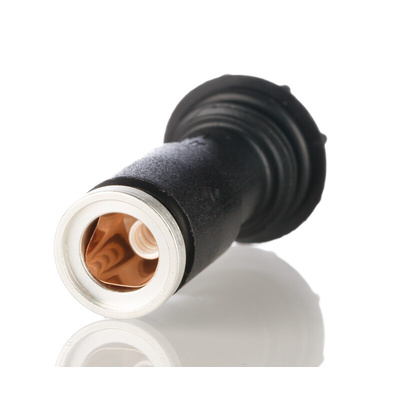

FX0419, Bulgin 16A Panel Mount Fuse Holder for 6.3 x 32mm Fuse, 1P, 250V ac, Держатель предохранителя

'BULGIN' IP67, Screw Cap, Touchproof PC2, 6.3mm x 32mm

Protection: PC2
High Temperature Thermoplastic Body
Body and cap UL94-VO rated
Panel cutout 16Ø x 14.4mm (AF), 16Ø x 17.3 (RA)

Approvals

UL, CSA, VDE, SEMKO, IMQ

Panel Mount Screw Cap IP68 Fuse Holder

From Bulgin these panel mount fuse holders, have been designed to give the required protection for all your electronic equipment and have been manufactured using high grade flame retardant materials.

These touchproof panel mount fuse holders are protection category PC2 and are panel sealed to IP68. They have been specifically designed to accommodate 6.3 x 32mm size fuse and are screw cap/ screwdriver/ hand release.

Features and Benefits

• Panel sealed to IP68
• Protection category PC2
• Fuse size 6.3 x 32mm
• Screw cap/ screwdriver/ hand release
• Contacts brass, silver plated
• Polyester body, nylon cap and glass filled nylon nut

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

FX0419 Datasheet
