Testec SI Series TT-SI 9010 Oscilloscope Probe, Active, Differential Type, 70MHz, 1:100, 1:1000, BNC Connector, Щупы для осциллографа

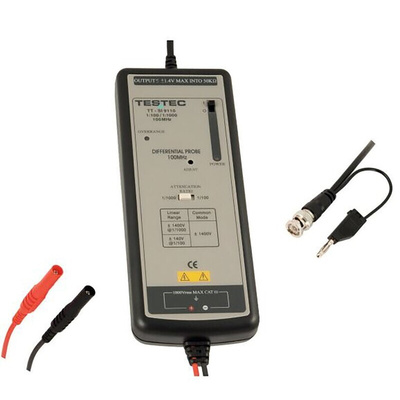

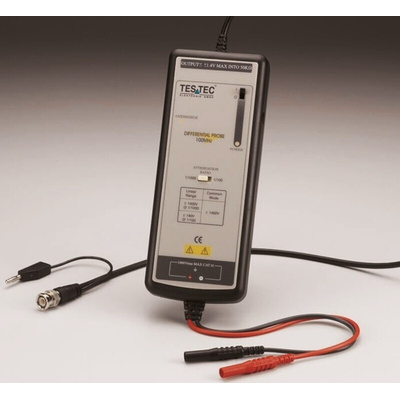

Testec 70MHz Active Differential Oscilloscope Probes

The Testec is an active differential oscilloscope probe that enables a conventional oscilloscope to display and measure in-circuit waveforms that are referenced to high common-mode voltages. It is capable of safely measuring differential voltages up to ±2500V AC and 7000V ac/dc. It supports bandwidths up to 70MHz.

This oscilloscope probe can measure signals below 700V by selecting the attenuation ration to 1:100.

Features and Benefits

Bandwidth is DC to 70MHz
Attenuation is 1:100/1:1000
Rise time is 5ns
Differential mode input voltage is 1:100 ±700V (DC+peak AC) or 700Vrms 1:1000 ±7000V (DC+peak AC) or 5000Vrms
Input impedance is 10Mohm ll10pF each side to ground
Common mode voltage range is 1:100 and 1:1000 ±7000V (DC+peak AC) or 2500Vrms
Non-destructive max. input voltage is 1:100 and 1:1000 ±7000V (DC+peak AC) or 2500Vrms
CMRR (typical) is -80dB at 50Hz and -60dB at 20kHz
Offset (typical) is <±5mV
Noise (typical) is 0.9mVRMS

Applications

Oscilloscope probes are used with oscilloscopes to enable the signals on the circuits being tested to be connected to the oscilloscope so that signals can be measured. These oscilloscope probes can be found in:

Performance conversion
Inverters
Motor speed indicators
Switch mode power supplies

Certifications

CAT I 2500 VAC
CAT II 7000 VAC/DC

Supplied with
type":"Supplied with",

Probe
4 x AA batteries
2 x Grabbers red & black
Instruction manual
Factory calibration certificate

Datasheet - TT-SI 9010/9020

Instruction Manual - TT-SI 9010
