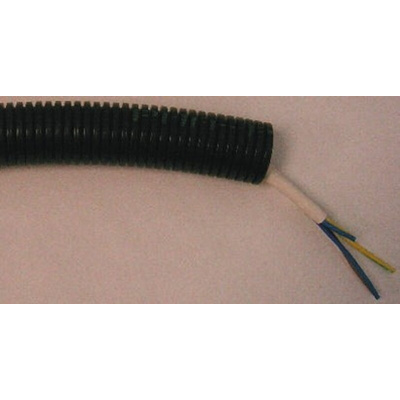

VAMLG-23B, PMA VAML Plastic Flexible Conduit Black 25mm x 10m M25, Кабелепровод

Flexible Medium Wall Conduit - VAML

The flexible medium wall VAML heavy wall black conduits offer excellent flame properties and are therefore specially used for applications in the passenger areas of railway vehicles or in traction tunnels as well as underground stations and public buildings. They are additionally characterised by medium to high mechanical strength and good weather resistance. The VAML is medium walled and is manufactured from modified Polyamide 6.

PMAFLEX Polyamide & Polyurethane (IP68/66)

Features for all conduit types:

IP68/66 (dependent upon Fittings)
Halogen & Cadmium free
None flame propagating
Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents
PCL: -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved
PUE: -60°C to +50°C operating temperature, excellent reversed bending properties
VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec
PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J
VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)
PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL

EU Declaration of Conformity

Flexi Medium PA6 Conduit Data Sheet
