SPHD1-SPHD1-24150, JST SPHD to SPHD Crimped Wire, 150mm, 0.25mm², Кабель

Pre-terminated crimp leads

AWG 24
Rectangular crimp for greater contact area
Contact on crimped lead offers positive latching with housing, typical stock number 476-6760

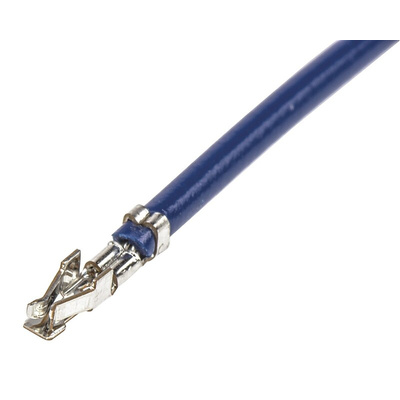

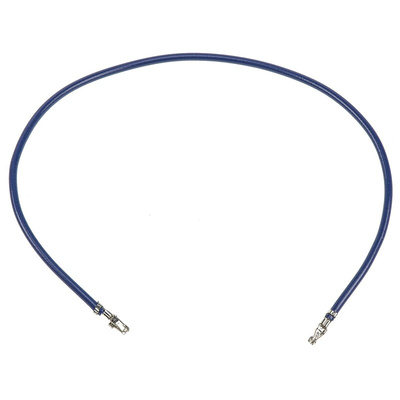

JST Crimp Lead

The JST 150mm crimp lead is a rectangular crimp for a greater contact offering positive latching with a housing. The PA interconnection system on a 2.0mm pitch provides a secure wire to board connection with an additional locking device feature. The thumb depress mechanism prevents an accidental disconnection during assembly or as a result of vibration. It is suitable for a wide range of applications where a secure anti-vibration connection is required. It has a voltage rating of 250VAC/DC and a current rating of 3AAC/DC.

Features and Benefits

Flanged press pin
Insertion guide mechanism
Low insertion force
Polarizing boss
Reliable contacts
Top entry and side entry headers available
Applicable wire is AWG 28 to AWG 22

Applications

Automation systems
Electronic devices

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

2.0 mm JST PA Range

The PA interconnection system on a 2.0mm pitch provides a secure wire to board connection with additional locking device feature. The thumb depress mechanism prevents accidental disconnection during assembly or as a result of vibration. Suitable for a wide range of applications where a secure anti-vibration connection is required.

Top entry and side entry headers available
Header has polarising guides for easy and secure insertion
Header pins are low insertion force

SPHD1-SPHD1-24150 Data Sheet
