279435 M22-XCK2, Eaton Label Joystick Legend Plate

Eaton M22 Series

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons including LED elements, selector switches, key switches, push-pulls, Joysticks, alternate action and twist-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business.

Eaton RMQ-Titan M22 Joysticks

These Joystick switches from Eaton offer 2 and 4 position levers with one operating point per operating direction. Joystick switches can be used in places were motion sequences are controlled by hand enabling the user to control movements such as raising, lowering and left to right movements among other possibilities. They all offer an IP rating of IP66 which provides complete protection against contact (dust-tight) and against powerful water jets with increased pressure.

Contact module (front mounting type) and fixing adaptor required for electrical operation
Legend plates available see stock. no. 512-9831 typically

Applications:

Can be easily integrated into various control panels
Maritime sectors
Medical sectors
Heavy-duty machinery / Industrial controls
Conveyor Systems

Approvals

UL, CSA.

Standards

IEC/EN60947.

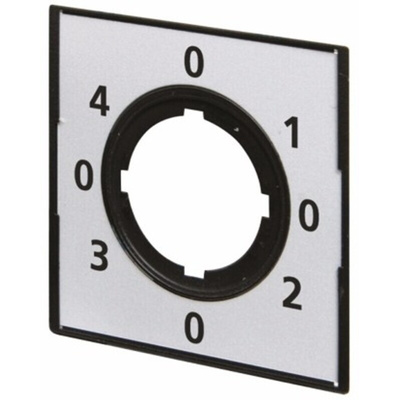

Eaton RMQ-Titan Legend Plate for 4 Position Switches - M22-XCK2\n

For use with actuators such as RMQ Titan joyswitch and selector switches, typical stk. nos. 399-3214 & 536-3823
Front panel mounting, retained in position by component

Note

Eaton formerly known as Moeller

Datasheet - Eaton M22-XCK2
