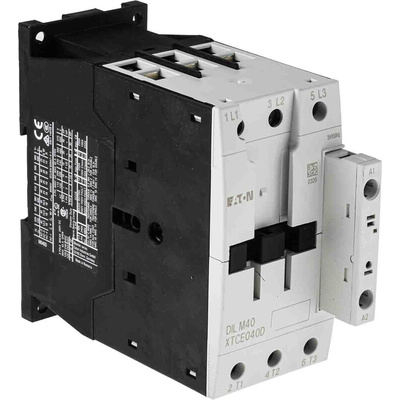

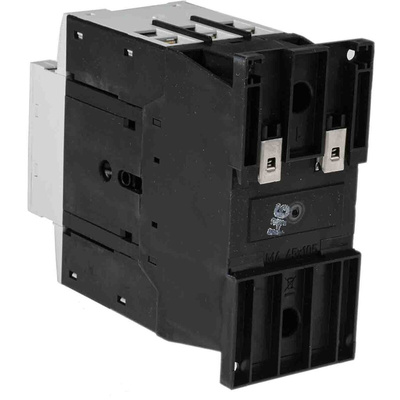

277770 DILM40(24V50/60HZ), Eaton Contactor, 24 V ac Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 400V AC Contact Voltage Rating, Screw Terminals - DILM Series - 277770 DILM40(24V50/60HZ)

When you need to safely start and stop electric motors in your industrial environment, go for this contactor from Eaton. It's AC-4 rated, so you can use it for inching and plugging of AC induction motors, making it a versatile control solution. As you have the option to control the switch remotely, it's a convenient choice. For safe handling, the unit's thermoplastic housing serves as an insulator and protects you from electric shocks. You'll find this contactor commonly used on assembly lines to control conveyor motors.

Features & Benefits

• Finger-proof and back-of-hand-proof to prevent accidental contact with live parts
• Power rating of 18.5kW for use in heavy-duty applications
• Compact dimensions of 115 (length) x 77 (width) x 147mm (depth) for installation in setups with limited space
• Wide operating temperature range of -25°C to +40°C for use in challenging conditions

How do I terminate cables to this contactor?

This contactor has screw terminals, so it's easy for you to link conductors to it. Use a simple Pozidriv size 2 screwdriver to secure wires to the device's main circuit with M6 screws.

Note

Eaton formerly known as Moeller

Dimensional Drawing

Eaton DILM40(24V50/60HZ) Contactor Datasheet

Instruction Sheet - DILM
