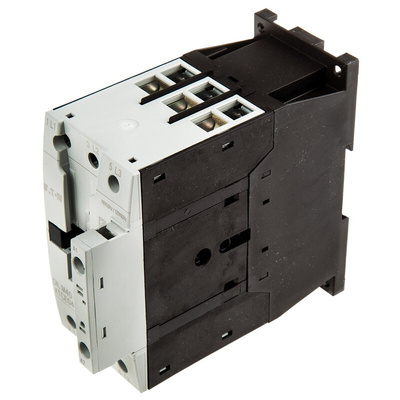

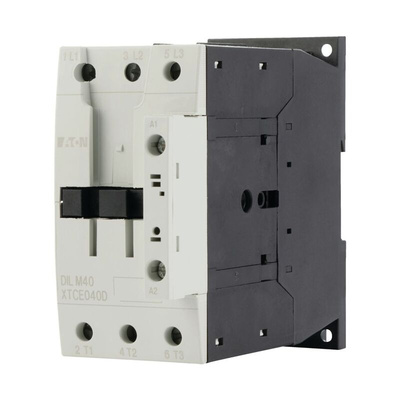

277763 DILM40(110V50HZ,120V60HZ), Eaton Contactor, 110 V ac Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 3NO Configuration, Screw Terminals - DILM Series - 277763 DILM40(110V50HZ,120V60HZ)

Turn circuits on and off without a hitch using this contactor from Eaton. The electrically-operated electromagnetic coil makes switching quick and reliable, letting the unit carry out 5000 operations an hour. A 40A current rating and 400V AC voltage rating ensures it can handle powerful applications in mechanical engineering, shipbuilding and green technology. To keep it working safely, the contactor has climatic proofing and short circuit protection, as well as isolation between the coil and contacts. An overload relay (493-0438) can be mounted underneath and a surge suppressor (307-392) on the front if you want to upgrade motor protection without using valuable rail space.

Features & Benefits

• Works reliably in temperatures between -25°C and +60°C
• Compact frame size of 115 (L) x 77 (W) x 147mm (D) saves space in your setup
• Direct fieldbus connection for efficient link-up to industrial systems and machinery

What type of motors can I use this contactor with?

This contactor is rated for AC 1, 3 and 4 category motors with inductive and non-inductive loads. This means it's suitable for units that control lights, heating and lifts.

Can I add auxiliary contacts to this contactor?

Yes. This contactor accepts front-mounting (513-0263) and side-mounting (230-4498) auxiliary contacts for versatility.

Note

Eaton formerly known as Moeller

Dimensional Drawing

Datasheet - Eaton DILM40(110V50HZ,120V60HZ)

Installation Sheet - 277763 DILM40(110V50HZ,120V60HZ)

Catalogue - Motor Starters, Contractors
