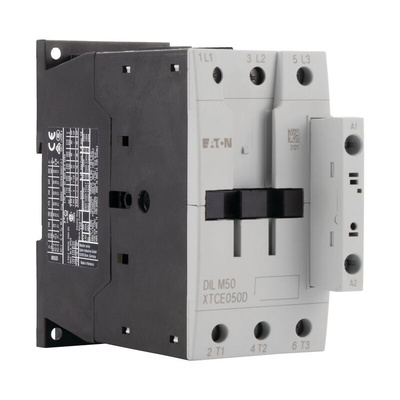

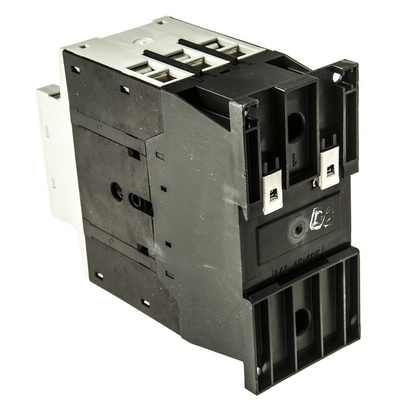

277827 DILM50(110V50HZ,120V60HZ), Eaton Contactor, 110 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 18 to 14AWG, 14mm Cable Stripping Length - 277827 DILM50(110V50HZ,120V60HZ)

Safeguard your industrial system from electrical arcs with this contactor from Eaton. You can use it to switch high-current electrical circuits on and off remotely. It's a versatile choice as it's equally at home working with AC-1, NAC-3 and AC-4 operations. This makes it an ideal option for motor start-up jobs or tasks that involve high initial loads. The unit delivers a rapid maximum response time of 18ms to give you immediate action at the flick of a switch. As it handles up to 5,000 operations per hour, it keeps pace with demanding applications. The assembly's compact dimensions of 132.1 (L) x 55 (W) x 115mm (H) mean it slots easily into crowded setups.

Features & Benefits

• Mechanical lifespan of 10 million operations indicates longevity
• 8kV AC impulse protection prevents damage caused by electrical surges
• Screw terminals for easy installation without the need for specialist tools

Can I use this contactor in harsh conditions?

Yes. This contactor performs reliably in an ambient temperature range between -25°C and +60°C, so it's ideal for use in harsh conditions.

How much does this device weigh?

This product only weighs 872g, so it keeps strain on your setup minimal.

Note

Eaton formerly known as Moeller

Dimensional Drawing

Eaton DILM50(110V50HZ,120V60HZ) Contactor Datasheet

Instruction Sheet - DILM Series

Catalogue - Motor Starters, Contactors
