277838, Eaton Contactor, 230 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 400 V ac, Контактор

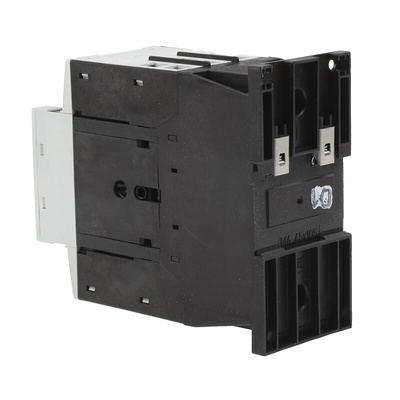

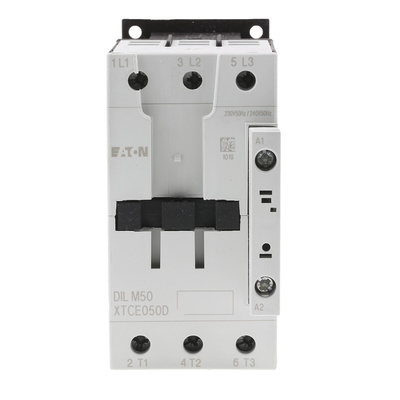

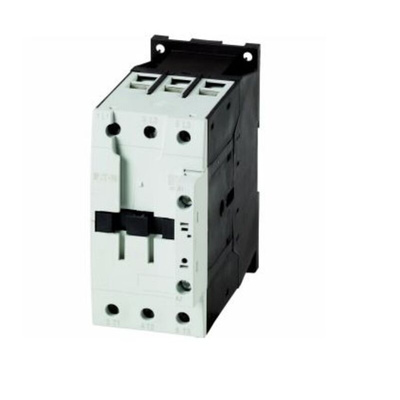

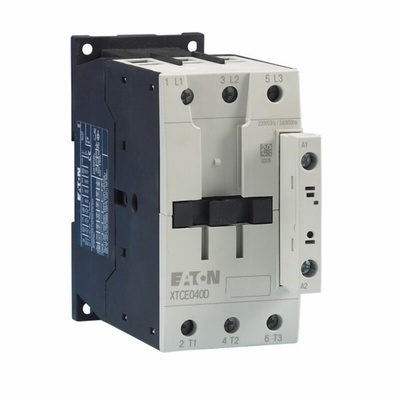

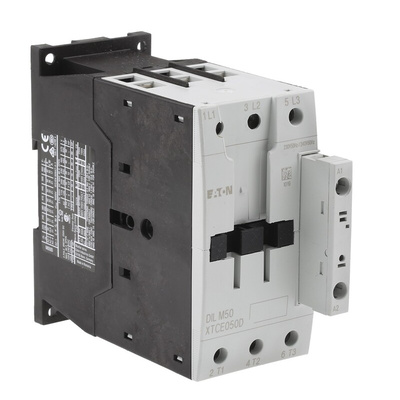

Eaton Contactor, Finger Proof, 22kW Power Rating - DILM Series - 277838 DILM50(230V50/60HZ)

Switch your electric circuits on and off safely with this contactor from Eaton. It has three normally open contacts that close when the integrated coil receives power, which energises the circuit. Thanks to a contact current rating of 50A, you can safely use this component in your heavy-duty equipment. The integrated fuse helps protect the contactor from short circuits and current overload. As it's finger-proof and back-of-hand-proof, you can handle this unit without the risk of electric shocks.

Features & Benefits

• Power rating of 22kW to withstand high-power systems
• Operating frequency of 5000 operations per hour for durable performance
• Wide operating temperature range between -25°C and +60°C for safe use in harsh environments

Where should I use a 3-pole contactor?

You can use this 3-pole contactor to control electric motors that work with a three-phase load. It helps to regulate the starting, stopping and reversing of the motor in high-current systems.

How durable is this contactor?

This contactor has a mechanical lifespan of 10,000,000 operations, so you can rest assured you can use it for a long time, even in demanding conditions.

Note

Eaton formerly known as Moeller

Dimensional Drawing

DILM50(230V 50HZ) Datasheet

Catalogue - Motor Starters & Special Purpose Ratings For The North American Market

Instruction Sheet - 277838 DILM50(230V50/60HZ)

Line Drawing - 277838 DILM50(230V50/60HZ)
