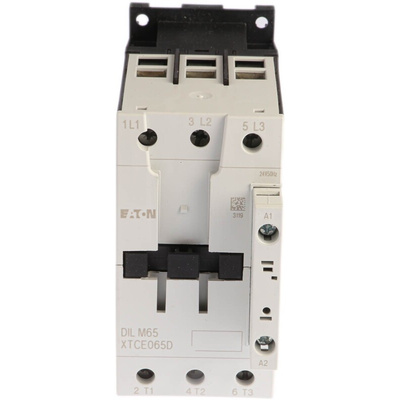

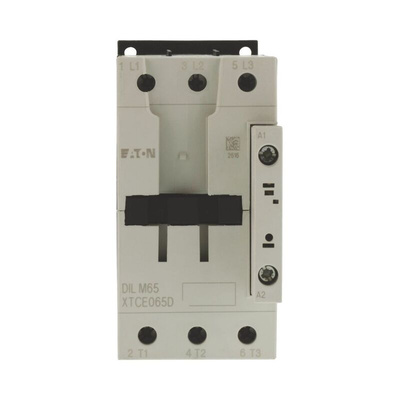

277898 DILM65(24V50/60HZ), Eaton Contactor, 24 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 8000V AC Rated Impulse Withstand Voltage, 690V AC Rated Insulation Voltage - DILM Series - 277898 DILM65(24V50/60HZ)

Keen to boost the switching capacity of your equipment? Put this 30kW contactor from Eaton on the case. It's ideal for booting up three-phase motors in manufacturing and industrial settings. The 3NO configuration gives you added flexibility when setting up user-supervised systems. As the unit can switch off and on up to 5,000 times an hour and is rated to deliver 10 million operations, you can trust it to keep up with fast-paced machinery for the long term.

Features & Benefits

• Screw terminals simplify wiring to make installation quick and simple
• Functions reliably in demanding environments thanks to its -25°C to +60°C operating temperature range
• Slim dimensions of 55 (W) x 132.1 (L) x 115mm (H) save space in a busy setup

Is this contactor IE3-ready?

Yes, this contactor is primed and ready to work alongside IE3 motors, making it ideal for use in European manufacturing systems.

What accessories attach to this contactor?

You can boost the capabilities of this component in a flash by attaching either a two-pole or four-pole auxiliary contact (such as 513-4372 or 230-4501) to the front.

Note

Eaton formerly known as Moeller

Dimensional Drawing

Eaton DILM65(24V50/60HZ) Contactor Datasheet

Instruction Sheet - DILM Series

Catalogue - Motor Starters, Contactors
