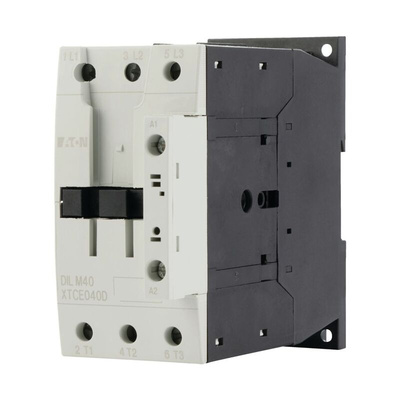

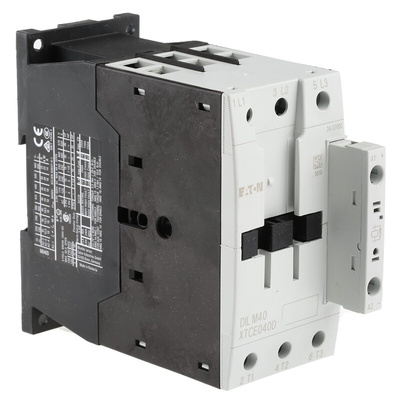

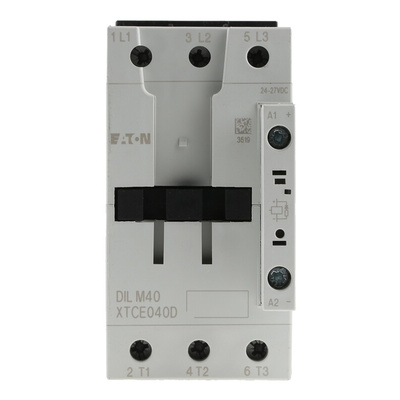

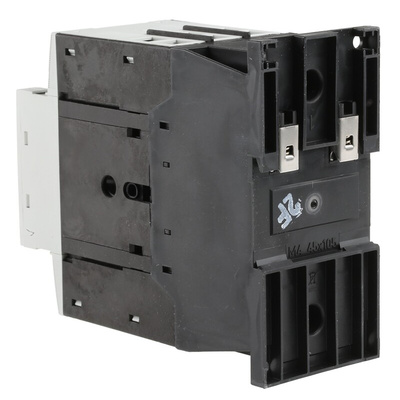

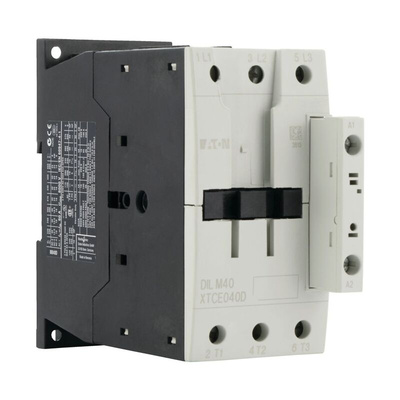

277780 DILM40(RDC24), Eaton Contactor, 24 V dc Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 1.05kg Net Weight, Overvoltage Category III - DILM Series - 277780 DILM40(RDC24)

For the hassle-free switching of your electrical circuits, choose this 18.5kW contactor from Eaton. Simply supply it with 24V DC to close its contacts and power up connected components with a voltage rating of up to 400V AC. It's designed to deliver 5,000 operations per hour, making it a smart option for challenging stop-start industrial applications. You'll find units like this one used to support networks, HVAC systems and electric motors.

Features & Benefits

• 1.2 to 3.3Nm tightening torque means it's a breeze to install by hand
• -25°C to +60°C operating temperature range shows it can handle the demands of industrial workplaces
• Compact size of 147 (D) x 77 (W) x 115mm (L) makes it suitable for mounting in setups where space is tight
• Mechanical lifespan of 10 million operations, so it won't suffer a loss of performance any time soon

Does this contactor withstand impulse voltages?

Yes, the contactor's rated impulse withstand voltage indicates that it can handle surges of up to 8000V AC, protecting your system from damage.

Note

Eaton formerly known as Moeller
