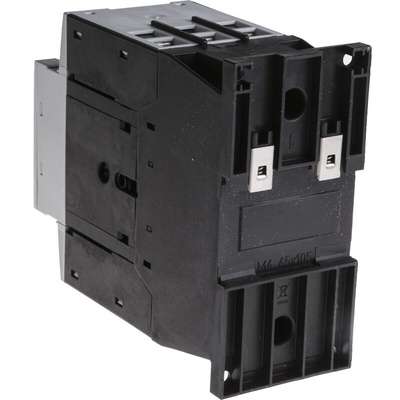

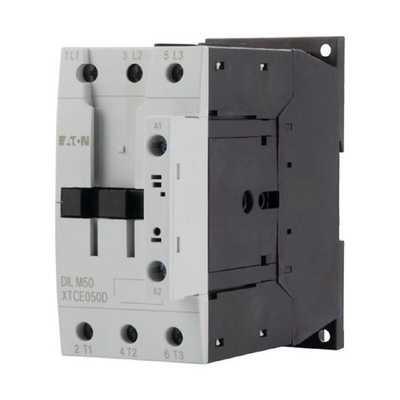

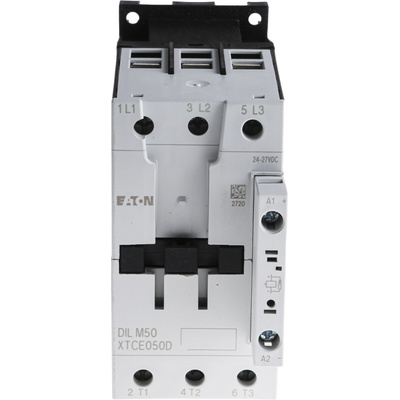

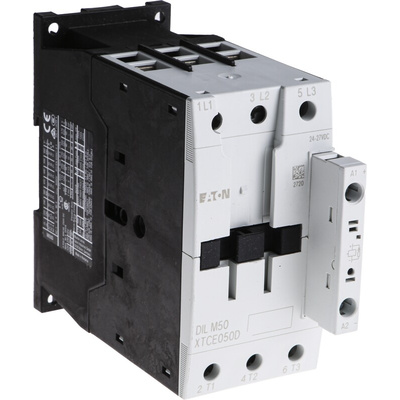

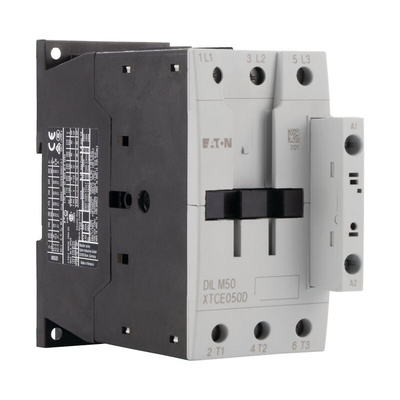

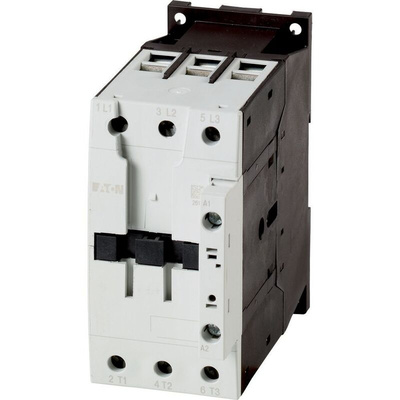

277844 DILM50(RDC24), Eaton Contactor, 24 V dc Coil, 3-Pole, 50 A, 22 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 3NO Configuration, Overvoltage Category III - DILM Series - 277844 DILM50(RDC24)

Need a hardworking switching solution for your industrial electrics? This 22kW contactor from Eaton steps up to the plate. It has a high operating frequency rating of 5000 cycles per hour, so it's ideal for fast-paced industrial applications. Supplying it with 24V DC causes its contacts to close and allow current to pass through a connected 400V AC circuit. As the unit's been tested up to 8000V AC for impulse protection, you can rest assured the risk of surge-related damage to your equipment is minimised. Reach for it when you're setting up lighting networks, HVAC systems and electric motors.

Features & Benefits

• Suitable for use in challenging environments thanks to a wide operating temperature range between -25°C and +60°C
• Screw terminal tightening torque of 3.3Nm means you can easily install it by hand
• 3 poles to support 3-phase equipment

What lifespan will I get from this contactor?

The rated mechanical lifespan of this product is 10 million operations, so it's a durable choice.

How much space does the unit take up?

It's a small device with dimensions of 147 (D) x 77 (W) x 115mm (L), so it's a space-efficient option.

Note

Eaton formerly known as Moeller

Dimensional Drawing

DILM50(RDC24) Datasheet

Instruction Sheet - DILM(C)40/50

Catalogue - Motor Starter, Protector
