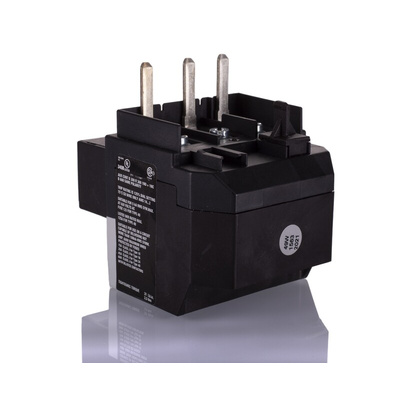

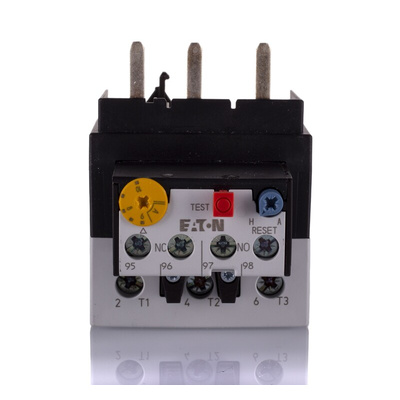

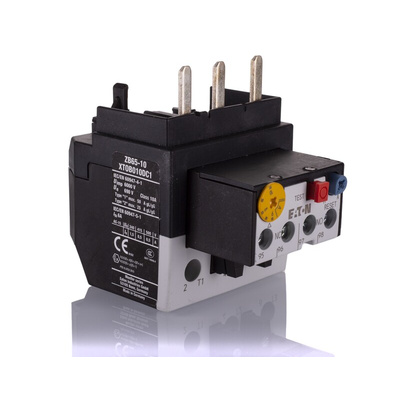

278455 ZB65-10, Eaton Overload Relay 1NO + 1NC, 6 → 10 A F.L.C, 10 A Contact Rating, 7.5 W, 500 Vac, Реле

Eaton Overload Relay, Automatic / Manual Reset Types, 6kV Impulse Voltage Rating - ZB65 Series - 278455 ZB65-10

Protect your appliances from overcurrent with this overload relay from Eaton. It breaks the attached circuit if the current rises too high, stopping electrical faults from damaging your equipment. Thanks to an adjustable current range between 6 and 10A, the device is compatible with standard contactors. Selectable automatic and manual reset functions let you control how the unit restarts to suit the needs of your application. As it mounts directly to the underside of your contactor, installation is quick and straightforward. Use this relay to protect your motor starters and control panels.

Features & Benefits

• Trip-free release prevents failures caused by tampering and delivers reliable protection
• Power rating of 7.5W for energy efficiency
• Broad operating temperature range from -5°C to +55 °C for use in demanding industrial environments

Is this overload relay safe for use in wet conditions?

This relay's IP00 rating means it isn't protected against dust or water. You can only use it in wet conditions if it's protected by an enclosure.

How do I know if I've installed this relay properly?

You can use the unit's integrated test function to ensure it's correctly installed.

Note

Eaton formerly known as Moeller

Datasheet - Eaton ZB65-10

Line Drawing - 278455 ZB65-10

Manual - 278455 ZB65-10
