283131 DILM32-XSL, Eaton Contactor Wiring Kit for use with DILM17 Series, DILM25 Series, DILM32 Series

DILM Wiring Links

Rigid pre-formed wiring links used to configure various Xstart components for different motor starting applications. Using these kits provides a quick and cost effective wiring method.,3 wiring options available;

Starpoint used when assembling star delta starters and used on the star contactor
Star-Delta used for the main current inter wiring for a star delta combination
Reversing used for the main current inter wiring for a reversing combination

Note

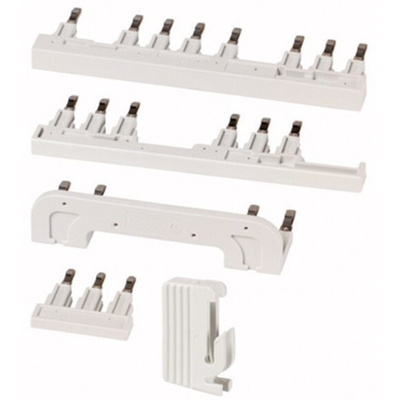

Kit contents varies according to application selected, shown are typical kit contents.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILM32-XSL
