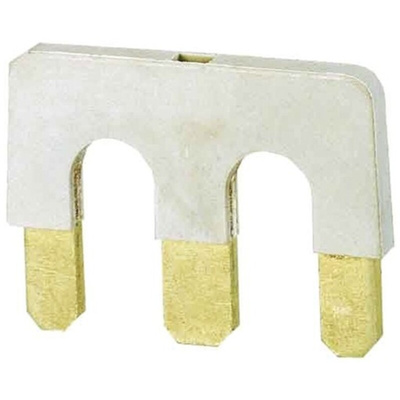

281191 DILM32-XS1, Eaton Contactor Bridge for use with DILM7 to DILM32 Series, DILMF8 to DILMF32 Series

DILM Wiring Links

Rigid pre-formed wiring links used to configure various Xstart components for different motor starting applications. Using these kits provides a quick and cost effective wiring method.,3 wiring options available;

Starpoint used when assembling star delta starters and used on the star contactor
Star-Delta used for the main current inter wiring for a star delta combination
Reversing used for the main current inter wiring for a reversing combination

Note

Kit contents varies according to application selected, shown are typical kit contents.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILM32-XS1
