Fluke 2042 Cable Tracer, Cable Detection Depth 2.5m CAT III 300 V, Maximum Safe Working Voltage 400V

Fluke 2042 Cable Tracer

The Fluke 2042 is a versatile professional general purpose cable locator ideal for tracing cables in walls and floors. With the Fluke 2042 interruptions and short-circuits can be found in cables, perfect for applications such as underfloor heating systems. Metal pipework can also be traced.

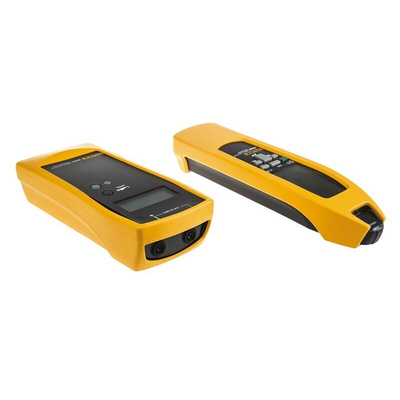

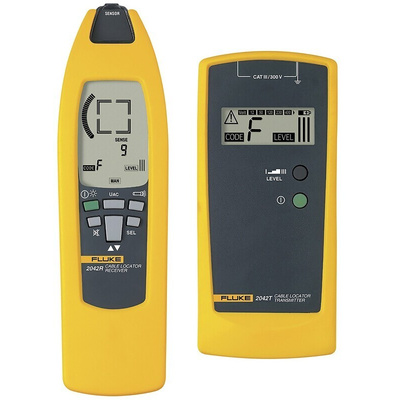

The kit consists of a transmitter and receiver. The transmitter is used to apply a signal to the desired circuit under investigation. The separate receiver is then used to trace the signal in the circuit and incorporates a torch to assist in dimly lit locations.

Features & Benefits

• Traces cables & metal pipes in walls and floors
• Locates fuses and assignment to circuits
• Locates concealed sockets and distribution boxes
• Locates interruptions and short-circuits in unshielded electrical cables
• Tracing depth up to 2.5m – dependant on material (concrete etc.)
• Mains voltage location up to 0.4m
• Transmitter LCD display for transmission level, transmitting code and external voltage
• Receiver with LCD display of received signal level, code and live voltage indication
• Automatic or manual adjustment of receiving signal sensitivity
• Torch lamp in receiver for dark environments

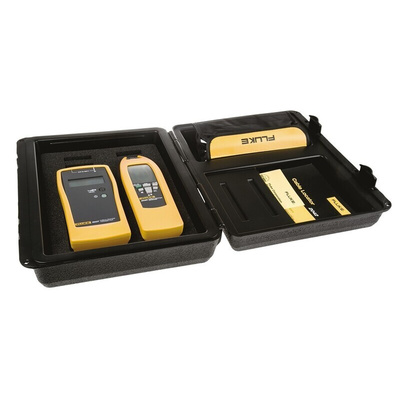

Kit Contents

• 2042 transmitter
• 2042 receiver
• TP74 lantern tip test probe set
• AC285 alligator clip set
• Soft carry case

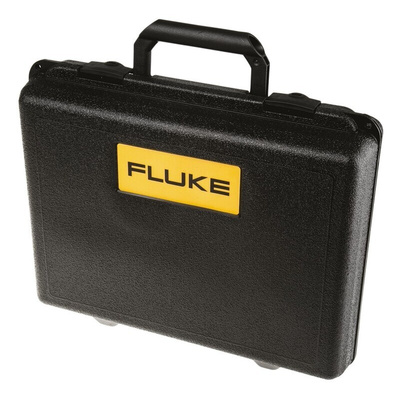

• Hard case
• User Guide

FLUKE Cable Tracer, 2.5m Detection Depth, 60Hz Maximum Frequency - FLUKE 2042

To locate wires without blindly digging around, reach for this cable tracer from FLUKE. It cuts out detective work by detecting live or dead cables inside walls and underground up to a depth of 2.5m. This all-round workmate also picks up fuses, breakers and problems such as short circuits. You can even use it to track metal pipes in water and heating systems. The receiver features a built-in torch that lights up the way in dark spots. This robust unit's a safe bet in tough environments, thanks to a wide operating temperature range between 0°C and +40°C.

Features & Benefits

• LCD display with backlight for clearly visible readings
• Automatic power-off function saves battery life
• 12 to 400V measurement range covers low-voltage and high-voltage applications

Applications

• Construction industry
• Electrical engineering
• Power plants
• Building maintenance

Do I need any additional accessories to use this cable tracer?

No, this kit includes everything you need – a transmitter, receiver, probe set and alligator clips. It even comes with a compartmentalised hard case so you can safely store and transport it.

Does this cable tracer automatically set receiving signal sensitivity levels?

Yes, it has an automatic function. For versatility, you can also set your receiving signal sensitivity levels manually.
