56-131.20.300.24.01.000, 56-1400/117, EAO 56 Series Illuminated Emergency Stop Push Button, Panel Mount, SPST, IP65, IP67, Кнопочный переключатель

Disabled Access Pushbuttons IP67

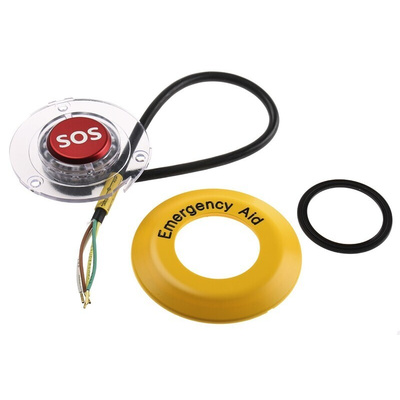

Door open – Wheelchair symbol plus "Door Open" engraved on bezel, blue raised metal palm push lens with wheelchair symbol. Illuminated with 8 green LEDs,SOS - Red raised metal lens engraved "SOS" with 8 red LEDs and yellow bezel "Emergency Aid",Open/Braille - Natural aluminium raised lens yellow LEDs with open chevrons and yellow bezel engraved "Open" with braille,Open/Braille with raised chevrons Natural aluminium raised lens yellow LEDs with black, raised, open chevrons and yellow bezel engraved "Open" with braille,Non Illuminated - Switch with blue plastic lens engraved with wheelchair symbol and plain yellow bezel

24Vdc LED halo illumination/unilluminated
Raised metal pressel for palm push operation/plastic lens
Large 34mm diameter vandal resistant actuator
IP67 sealed from front
Front mount with bezel/rear mount with studs
1 Normally open switch: Rating 137Vac/dc Max 200mA, minimum 5Vdc, 5mA
Front mounting: 3 fixing screws tamperproof with bezel
Rear mounting: use 3 studs

Series 56 range Data Sheet

56 Series Switch Product Specifications
